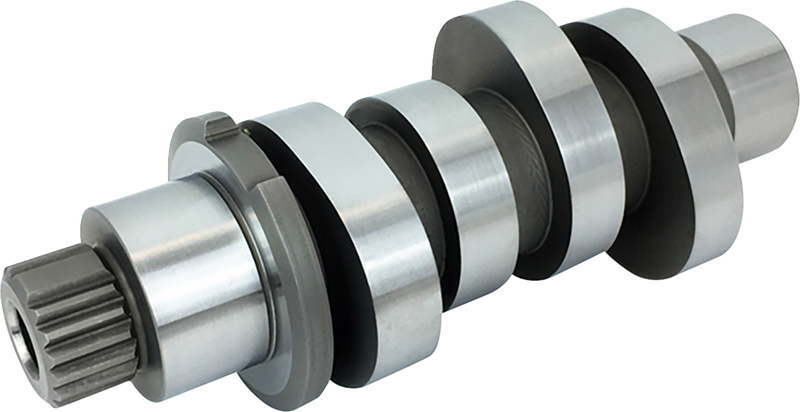

FEULING PARTS Reaper Camshaft - Chain Drive - 618 Series - M8 - Harley-Davidson '17-'24 - 1352

618 F CAM - RACE SERIES CAMSHAFT Requires large bore size, ported cylinder heads, ported intake manifold, high flow valves and large throttle body. Aggressive camshaft requiring high lift and higher load valvesprings see #1207, performance pushrods and lifters. High flow air cleaner and triple stepped exhaust pipe highly recommended. FEULING also recommends matching this cam with our RACE SERIES oiling system #7097 or #7099.

NOTE: High lift/High Load valvesprings required see recommended Feuling HIGH LOAD BEEHIVE valvespring kit #1207 (DRAG# 0926-3138). Heavy duty pushrods #4087 (Drag# 0928-0091). Clearances MUST be checked when installing this cam.

Part # 1352 RPM range 3,100 - 6,650. Grind: 618

...............Valve Lift Open Close Duration @ 50 TDC Lift Lobe Centerline
Intake .608 20 42 242 195 101
Exhaust .618 65 19 264 170 113
Overlap: 39
Lobe Separation: 107

Feuling does not recommend tuning beyond stock emissions standards.

FITS:

Milwaukee Eight 17 - 24 Except VVT, 618 grind chain drive cam, requires high lift valvesprings

• Race series
• RPM range 3100-6650
• Aggressive camshaft requiring high lift and higher load valve springs, performance pushrods and lifters.
• Requires large bore size, ported cylinder heads, ported intake manifold, high flow valves and large throttle body.
• High flow air cleaner and triple stepped exhaust pipe highly recommended.
• Feuling recommends matching this cam with Race Series oiling system.
• Clearances must be checked when installing.
• Feuling does not recommend tuning beyond stock emissions standards.

  NOTE: This part requires additional parts in order to function properly. Please add all additional required parts to your order as needed.
