HASTINGS Piston Rings - 114" Motor - 4.000" +.010" - M8 2C523225
🚚 Estimated Delivery: 26 Aug - 02 Sep
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
Piston Rings - 114" Motor - 4.000" +.010" - M8
- Includes top compression rings, second compression rings, and oil control rings
- Top compression rings are Barrel Face
- Coated using PVD (Physical Vapor Deposition) process
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second compression rings are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil control rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Notes
- Includes enough rings for two pistons.
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.

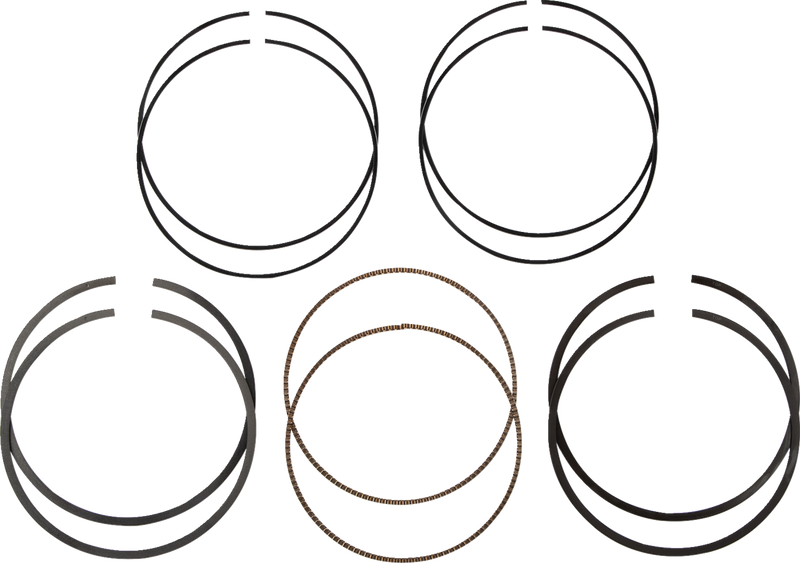

- Kit Includes:
- • 2x Top Compression Rings
- • 2x Second Compression Rings
- • 2x Expander Rings
- • 4x Steel Rails
Specs
| Product Name | Piston Ring Set |
| Type | Replacement |
| Bore Size | 4.000" |
| Piston Size | +0.010" |
| Displacement | 114" |
| Units | Set |
| Riding Style | Street |
Fitment Guide
| 2022-2024 | Harley-Davidson | FXLRS Low Rider S 117 | - | - |
| 2022 | Harley-Davidson | Softail Street Bob FXBB | - | - |
| 2021-2024 | Harley-Davidson | FXBBS Street Bob 114 | - | - |
| 2021 | Harley-Davidson | FLH Electra Glide Revival | - | - |
| 2020-2024 | Harley-Davidson | FLTRK Road Glide Limited | - | - |
| 2020-2021 | Harley-Davidson | FXLRS Low Rider S 114 | - | - |
| 2019-2024 | Harley-Davidson | FLHRXS Road King Special | - | - |
| 2019-2024 | Harley-Davidson | FLHTCUTG Tri Glide Ultra | - | - |
| 2019-2024 | Harley-Davidson | FLHTK Ultra Limited | - | - |
| 2019-2024 | Harley-Davidson | FLRT Freewheeler | - | - |
| 2019-2023 | Harley-Davidson | FLHXS Street Glide Special | - | - |
| 2019-2023 | Harley-Davidson | FLTRXS Road Glide Special | - | - |
| 2019-2020 | Harley-Davidson | FXDRS FXDR 114 | - | - |
| 2019 | Harley-Davidson | FLHTKL Ultra Limited Low | - | - |
| 2019 | Harley-Davidson | FLTRU Road Glide Ultra | - | - |
| 2018-2024 | Harley-Davidson | FLHCS Heritage Classic 114 | - | - |
| 2018-2024 | Harley-Davidson | FLFBS Fat Boy 114 | - | - |
| 2018-2021, 2023 | Harley-Davidson | FXFBS Fat Bob 114 | - | - |
| 2018-2020 | Harley-Davidson | FXBRS Breakout 114 | - | - |
| 2017-2024 | Harley-Davidson | FLHXSE CVO Street Glide | - | - |
| 2017-2021 | Harley-Davidson | FLHTKSE CVO Limited | - | - |
