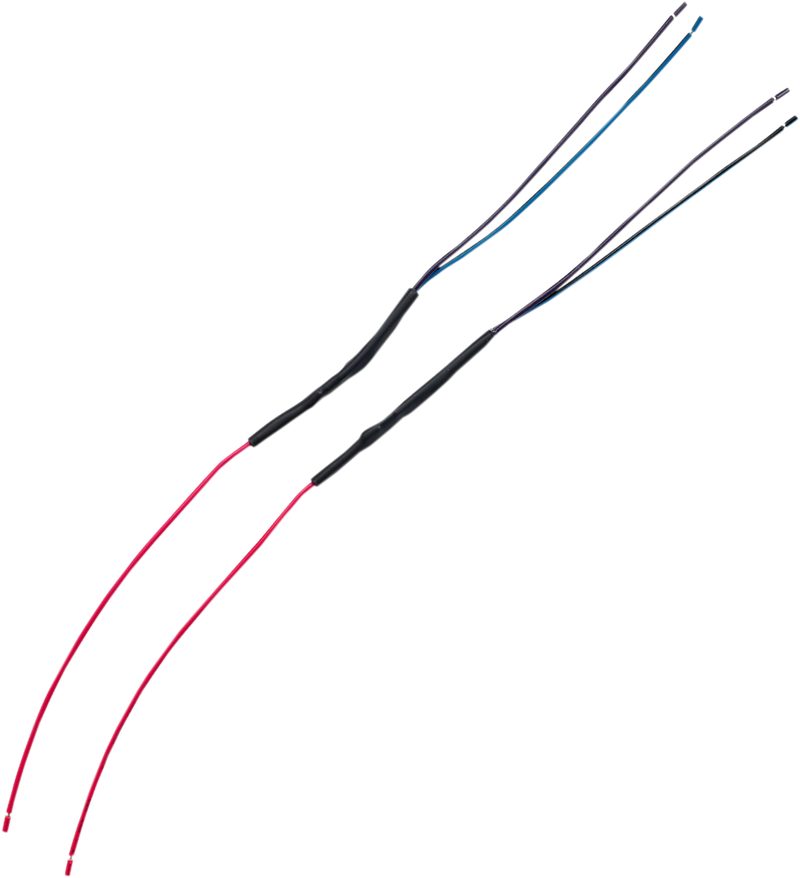

JOKER MACHINE LED Light Intensifier Module 05-59-1

Run/Brake/Turn LED turn signal intensifier in-line converter will convert a single function light, into a dual high function so it can be used as RUN/BRAKE/TURN or RUN/TURN.

Do I need intensifiers?

• Using lights as turn signal only: NO
• Using lights as running and turn signals: YES
• Using lights as run/brake/turn: YES

Front Turn Signal Applications: Converts any 2 wire LED turn signal into a 3 wire turn signal. Will operate as run/turn signal.

Rear Light Applications: Converts any 2 wire LED turn signal into a 3 wire turn signal. Will operate as run/brake/turn or run/turn signal.

• High function for turn signals and brake, low function for running lights.
• Solder your connections as shown in diagram, and heat shrink to cover your connections.
• Sold in pairs: One pair comes with 2 intensifiers, each light requires an intensifier, meaning you'll need only one pair for the rear or a pair for the front.

  NOTE: In-line converter is not for incandescent or halogen bulbs and max rated for 500 mili-amps.
