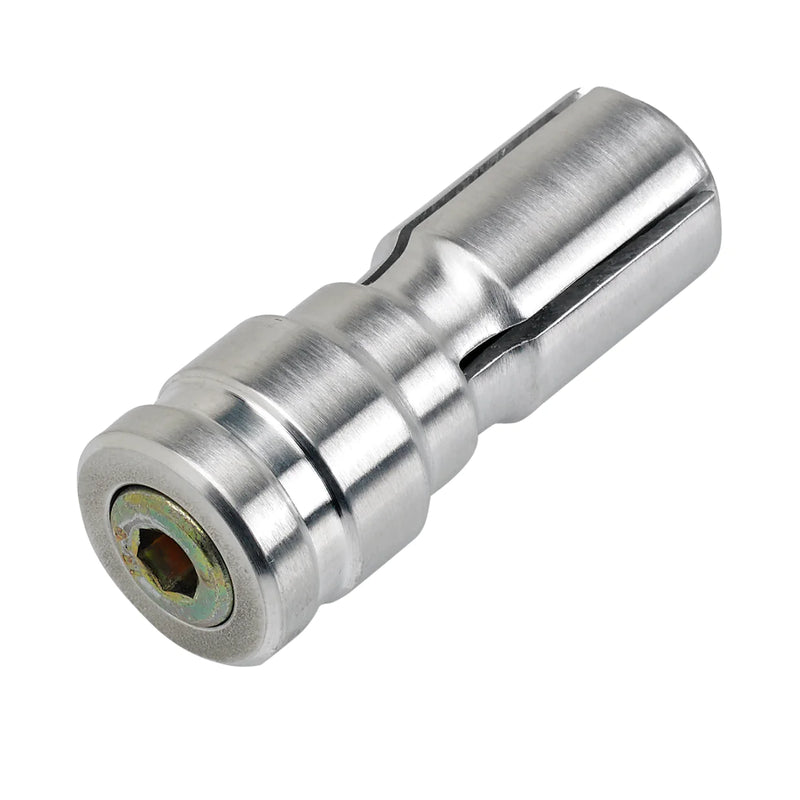

JOKER MACHINE Mirror Mount - 1" - Bar End - 09-300-2
JOKER MACHINE Mirror Mount - 1" - Bar End - 09-300-2

JOKER MACHINE Mirror Mount - 1" - Bar End - 09-300-2

by JOKER MACHINE
SKU 09-300-2
$60.95 - $60.95
$60.95
$60.95 - $60.95
$60.95

🚚 Estimated Delivery: 04 Aug - 11 Aug

Each BAR END MIRROR assembly requires one of our bar end mirror mounts.

  • Each assembly is UNIVERSAL and works on either left or right side of handlebars - choose the correct mount selection below for your application.
  • Expanding mount range is desinged for steel bar. Aftermarket and billet handlbars I.D. may vary from range chart below.
  • Joker Machine 1" clip-on handlbars use the 7/8" handlbar mount (09-300-1)
  • Joker Machine 7/8" clip-on handlebars use the far bar mount (09-300-3)
  • Made in USA

Expanding mount range for handlebar I.D.

  • 1" handlebar mount (p/n 09-300-2): .750" TO .850" - (19mm TO 21.6mm)
  • 7/8" handlabr mount (p/n 09-300-1): .650" TO .750" - (16.5mm TO 19mm)
  • Fat bar mount (p/n 09-300-3): .550" TO .650" - (14mm TO 15.5mm)

    NOTE: Expanding mount range: .750" to .850" - (19 mm to 21.6 mm).



Specs
PRODUCT NAME MOUNT
TYPE HANDLEBAR END
STYLE MIRROR
BASE COLOR SILVER
COLOR/FINISH SILVER
MATERIAL ALUMINUM
MOUNTING POSITION RIGHT / LEFT
FEATURES FOR ALUMINUM HANDLEBARS / 1" OUTER DIAMETER
UNITS EACH
RIDING STYLE STREET
