KOSO NORTH AMERICA D2 LCD Speedometer Fits Softail 2004-2010, Dyna 2004-2011, Sportster 2004-2013 & Road King 2004-2013 when Running Late Model Breakout/Street Bob Gauge Housing

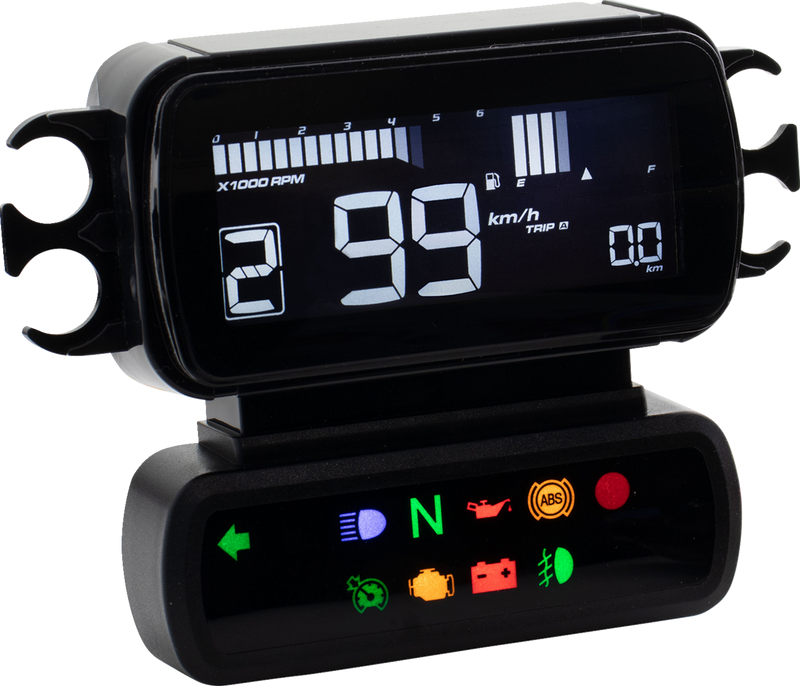

D2 LCD - Multifunction Meter

• High quality plug & play meter that is equipped with an 8-color changeable LCD display

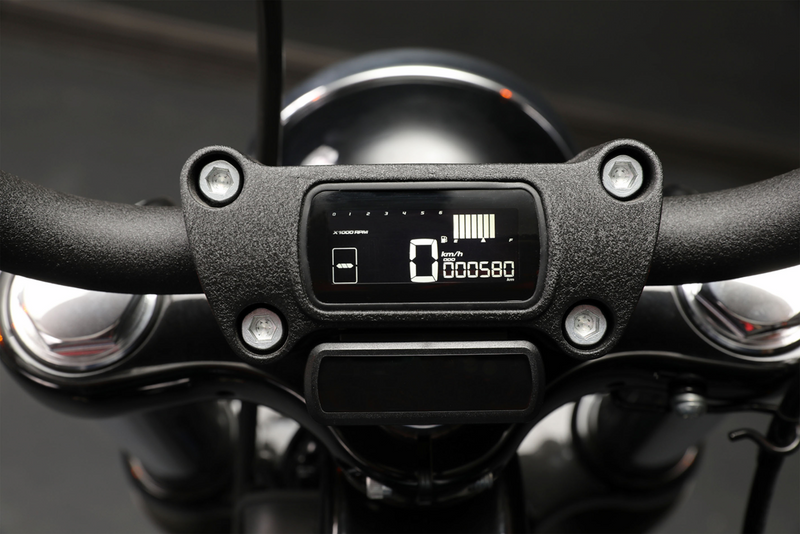

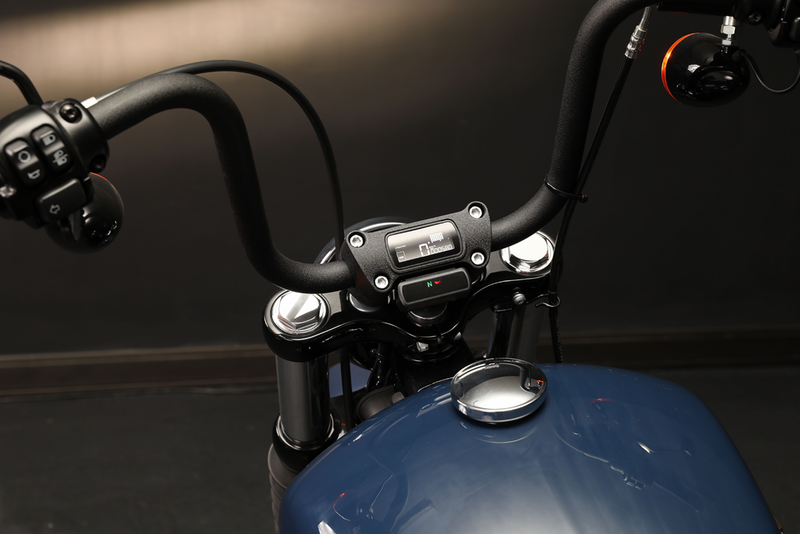

• Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)
• Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
• Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike
• Plugs directly into the stock harness and works directly with CANBUS system
• Display range: 0-124 mph
• Effective temperature range: -4°F-185°F (-20°C-85°C)
• 12VDC battery voltage
• Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
• Notes : XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.

*Requires Speedo Gasket & Bushes: BZ080000

Features & Benefits:-

Whether you have a Dyna, Softail, Sportster or Roadking model, this new D2 plug and play multifunciton meter will provide you vital readings such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor your bikes vital signs. This gauge will fit directly into the stock harness and work with your bike’s system. It also features a tach and speedo combo with a programmable shift light, a gear indicator for easily seeing what gear you’re in and an 8-color changeable LCD display.

These new speedos are designed to use with late model Breakout/Street Bob style risers & gauge housings i.e. # TS-TSC-9500-1
