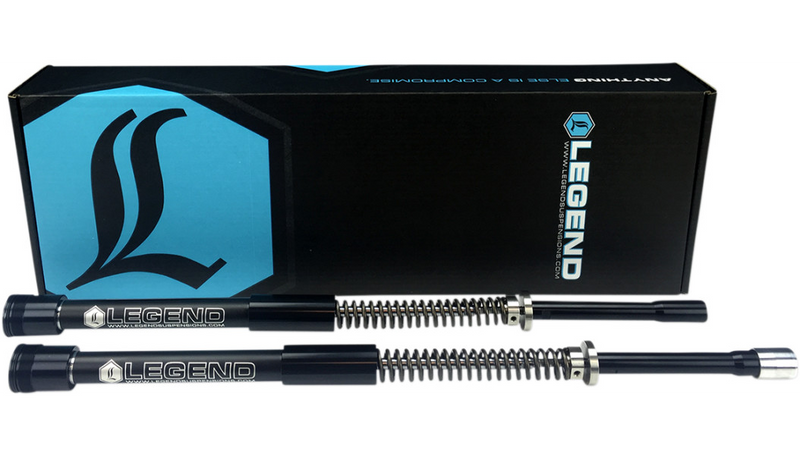

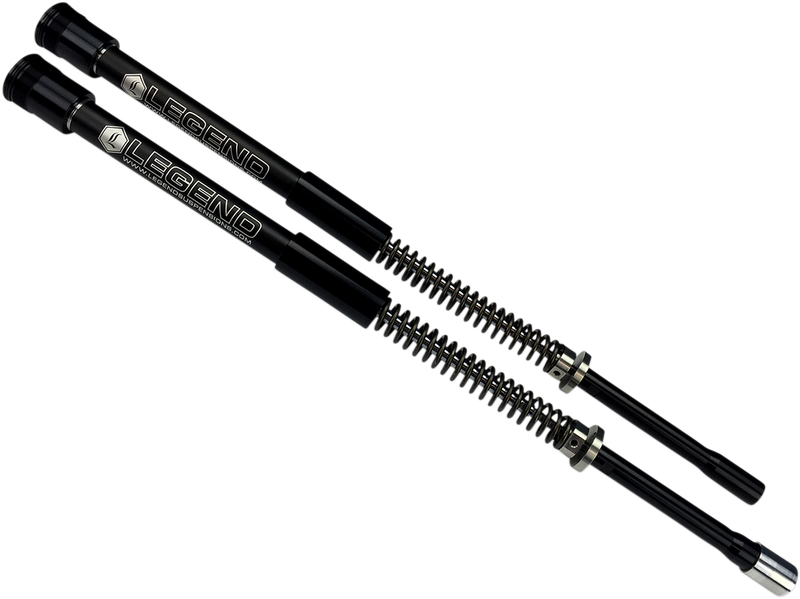

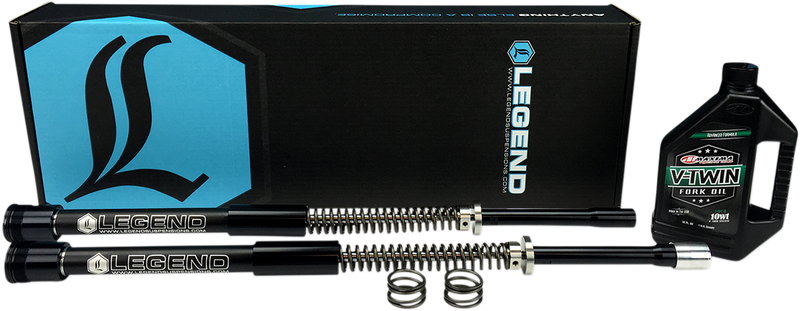

LEGEND SUSPENSION Standard AXEO Front Suspension - 49 mm - Trike '17-'18 0414-0519

LEGEND SUSPENSION Standard AXEO Front Suspension - 49 mm - Trike '17-'18 0414-0519

by LEGEND SUSPENSION
SKU 0414-0519
$1,496.95 - $1,496.95
$1,496.95
$1,496.95 - $1,496.95
$1,496.95
AVAILABILITY:
loading..

Warehouse Locations

*Gold Coast Warehouse Ships Same day
*USA Warehouse Delivers In Approx 3 Weeks
  • Designed to be used with stock diameter front wheels
  • Easy installation

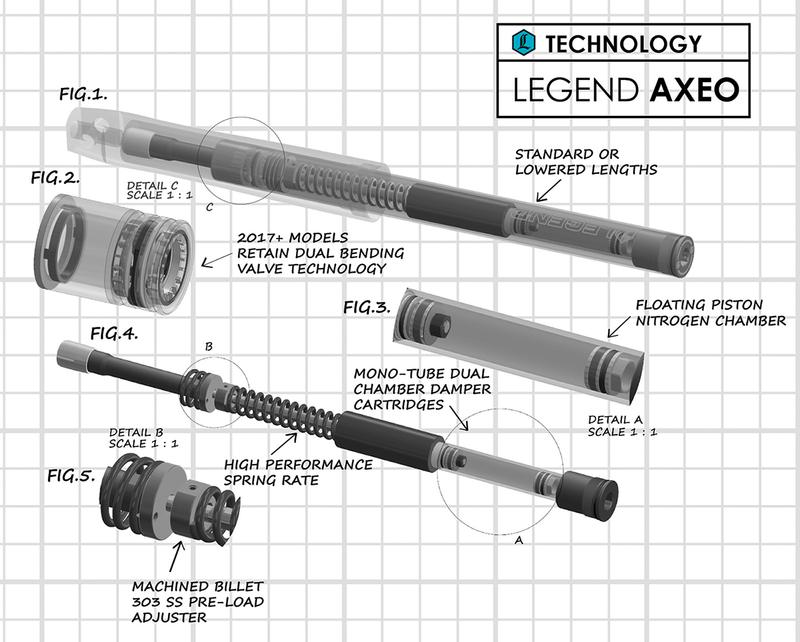

  • Includes two mono-tube, dual chambered damper cartridges, and two top out springs
  • Performance spring rate
  • Machined 303 Stainless threaded pre-load adjuster
  • Increased pre-load range allows the tuning for various riding styles and weights
  • Ride quality is smooth and controlled
  • Improves stability, cornering, and traction
  • Eliminates front-end dive during aggressive braking and maneuvering
  • Firm feel for high-speed sweeping turns
  • Eliminates bottoming out on large bumps or potholes
  • Designed for optimum performance with Legend rear suspensions
  • P65 WARNING: Cancer and Reproductive Harm
  • Made by hand in Sturgis, SD USA

    NOTE: Incorporates static sag to shorten overall fork tube length by approximately 1/2", resulting in weight transferred to the front wheel for improved handling. This product is not designed for use with 21" or 23" front wheels.




Fitment Guide
2017-2018 Harley-Davidson Tri Glide Ultra Classic FLHTCUTG - -
2017-2018 Harley-Davidson Freewheeler FLRT - -
Specs
PRODUCT NAME CARTRIDGE
TYPE FORK DAMPING
STYLE FOR STOCK FORK TUBES
MODEL AXEO
COLOR/FINISH BLACK
HEIGHT ADJUSTMENT STANDARD / STANDARD
UNITS KIT
RIDING STYLE STREET
