OHLINS STX36 Pro Blackline Shock - 12" Heavy Duty - Fully Adjustable - 2014+ Touring - HD 778S2
🚚 Estimated Delivery: 14 Nov - 21 Nov
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.

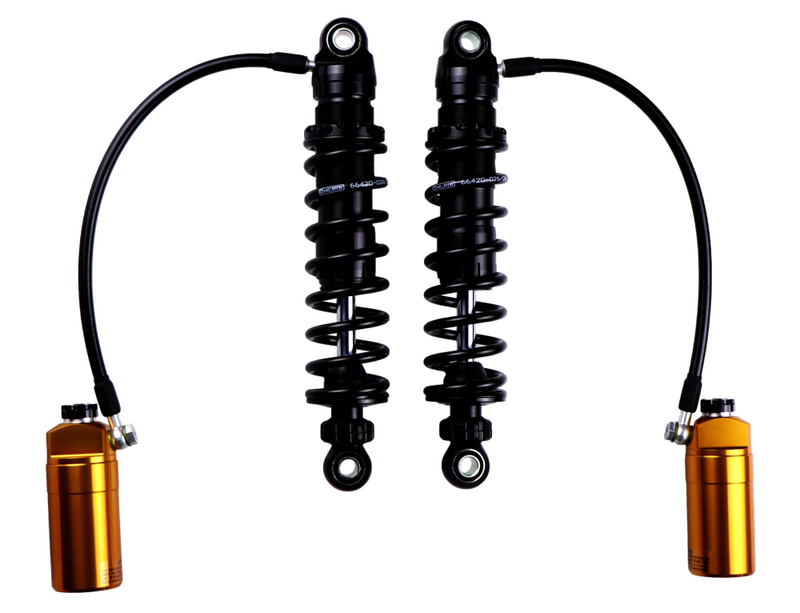

OHLINS STX36 Pro Blackline Shock - 12" Heavy Duty - Fully Adjustable - 2014+ Touring - HD 778S2
Introducing our latest release for Harley-Davidson: the fully adjustable Öhlins STX Pro. Building on the success of our popular HD 044 model, this update features a refined all-black design with Öhlins’ signature gold reservoirs and adjuster nuts. It retains the same range of adjustment options, now with black hoses, revamped billet compression adjuster knobs, and the iconic logo on the reservoir.
The STX Pro in Blackline is available in two sizes: the classic 13” (HD 779) and a new 12” (HD 778), both with ½” ID bushings for easy installation – no sleeves required. The shocks include Öhlins-branded, anodized aluminum bracket arms for rear-mounted installation and a preload adjustment tool.
Designed for all Harley-Davidson Baggers produced from 2014+, the STX Pro offers confidence-inspiring stability and handling, with enhanced bump compliance and an exceptionally plush ride quality. Upgrade your bike with this must-have shock and experience the difference of Öhlins suspension.
Specs
- Monotube high pressure gas shock absorber with external remote reservoir
- Adjustable rebound damping with adjuster wheel above the end eye
- Adjustable compression damping with adjuster wheel on the reservoir
- Length adjustable + 3/8"
- STX single tube design
- Built-in adjustable preload
- Multiple spring rates available to accommodate a wide range of riders
- Hard anodized
- Nitrogen charged
- Precision CNC-machined components
- Low-friction piston rod
- Low-friction eyelets
- Serviceable and repairable
- 36mm piston diameter
- Includes preload adjuster tool
-
Brackets for reservoir are included.
Spring Weights:
- Standard recommended for total loaded weight between 150lbs - 500lbs
-
Heavy Duty (These Shocks) recommended for total loaded weight between 250lbs - 565lbs
Heavy Duty Weight range: Min 250 lb – Max 575 lb - Two rules must be in place to use an S2:
- Rider must be over 250 lb
- Combined weight must be over 500 lb
- If either of those rules are not in place, the customer should select the HD 778 (Not HD 778S2).
