OHLINS STX Pro Blackout Shock - 2014+ Touring Shock - 12" - Heavy Duty - Black - HD 050S2
🚚 Estimated Delivery: 13 Nov - 20 Nov
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.

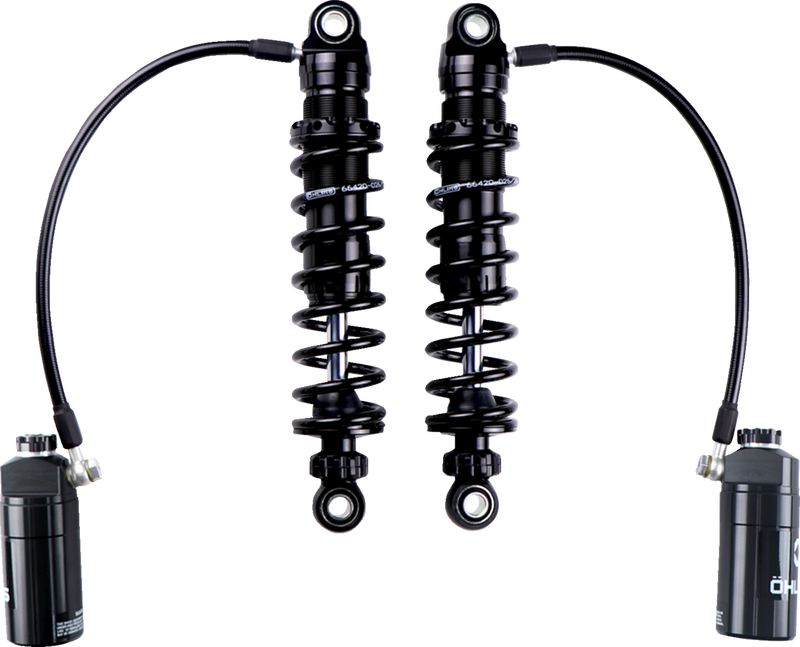

STX Pro Shock - 12" - Heavy Duty - Black - 2014+ Touring Shock - 12"
Introducing our latest release for Harley-Davidson: the fully adjustable Öhlins STX Pro. Building on the success of our popular HD 044 & HD 778 models, this update features a refined all-black design with Öhlins’ signature black reservoir and adjuster nuts. It retains the same range of adjustment options, now with black hoses, revamped billet compression adjuster knobs, and the iconic logo on the reservoir.
The STX Pro in Blackline with black reservoirs is available in two sizes: the classic 13” (HD 051) and a new 12” (HD 050), both with ½” ID bushings for easy installation – no sleeves required. The shocks include Öhlins-branded, anodized aluminum bracket arms for rear-mounted installation and a preload adjustment tool.
Designed for all Harley-Davidson Baggers produced from 2014 and later, the STX Pro offers confidence-inspiring stability and handling, with enhanced bump compliance and an exceptionally plush ride quality. Upgrade your bike with this must-have shock and experience the difference of Öhlins suspension.
*Includes Mounting brackets for Remote Reseviour
Features
- Monotube high pressure gas shock absorber with remote reservoir
- Adjustable rebound damping with adjuster wheel above the end eye
- Adjustable compression damping with adjuster wheel on the reservoir
- Length adjustable + or - 0.2"
- STX single tube design
- Built-in adjustable preload
- Multiple spring rates available to accommodate a wide range of riders
- Hard anodized
- Nitrogen charged
- Precision CNC-machined components
- Low-friction piston rod
- Low-friction eyelets
- Serviceable and repairable
- 36mm piston diameter
- Includes preload adjuster tool
- Mounting brackets included
- Sold as a pair
Spring Weights:
- Standard recommended for total loaded weight between 150lbs - 500lbs
- Heavy Duty (These Shocks) recommended for total loaded weight between 250lbs - 565lbs
