OHLINS STX Pro Blackout Shock - 2014+ Touring - 13" - Heavy Duty - Black - HD 051S2

by OHLINS
SKU 1310-2631
Sold out
Original price $3,229.95 - Original price $3,229.95
Original price
$3,229.95
$3,229.95 - $3,229.95
Current price $3,229.95

CONFIRM FITMENT BEFORE ORDERING

Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.

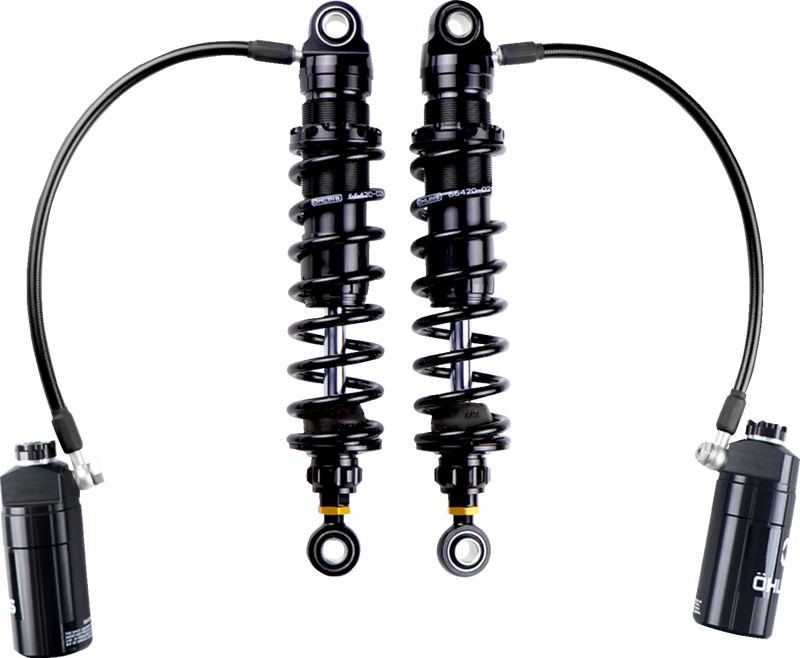

OHLINS STX Pro Blackout Shock -2014+ Touring - 13" - Heavy Duty - Black

The Öhlins STX36 Twin American V-Twin shock absorbers are designed to enhance performance and comfort on the road. From cruisers to café racers, these twin shocks are suitable for a variety of models. We offer emulsion, piggyback, hose, and inline versions of the shock, all tailor-made and tested to suit your bike. Our Öhlins STX36 shock absorbers for Harley-Davidson are available in three performance levels: STX Classic, STX Performance, and STX Pro. Each level is designed to meet different riding styles, performance expectations, and load requirements.

Introducing our latest release for Harley-Davidson: the fully adjustable Öhlins STX Pro. Building on the success of our popular HD 044 & HD 778 models, this update features a refined all-black design with Öhlins’ signature black reservoir and adjuster nuts. It retains the same range of adjustment options, now with black hoses, revamped billet compression adjuster knobs, and the iconic logo on the reservoir.

The STX Pro in Blackline with black reservoirs is available in two sizes: the classic 13” (HD 051) and a new 12” (HD 050), both with ½” ID bushings for easy installation – no sleeves required. The shocks include Öhlins-branded, anodized aluminum bracket arms for rear-mounted installation and a preload adjustment tool.

Designed for all Harley-Davidson Baggers produced from 2014 and later, the STX Pro offers confidence-inspiring stability and handling, with enhanced bump compliance and an exceptionally plush ride quality. Upgrade your bike with this must-have shock and experience the difference of Öhlins suspension.

*Includes Mounting brackets for Remote Reseviour

Features

  • Monotube high pressure gas shock absorber with remote reservoir
  • Adjustable rebound damping with adjuster wheel above the end eye
  • Adjustable compression damping with adjuster wheel on the reservoir
  • Length adjustable + or - 0.2"
  • STX single tube design
  • Built-in adjustable preload
  • Multiple spring rates available to accommodate a wide range of riders
  • Hard anodized
  • Nitrogen charged
  • Precision CNC-machined components
  • Low-friction piston rod
  • Low-friction eyelets
  • Serviceable and repairable
  • 36mm piston diameter
  • Includes preload adjuster tool
  • Mounting brackets included
  • Sold as a pair

Spring Weights:

  • Standard recommended for total loaded weight between 150lbs - 500lbs
  • Heavy Duty (These Shocks) recommended for total loaded weight between 250lbs - 565lbs

Fitment Guide
