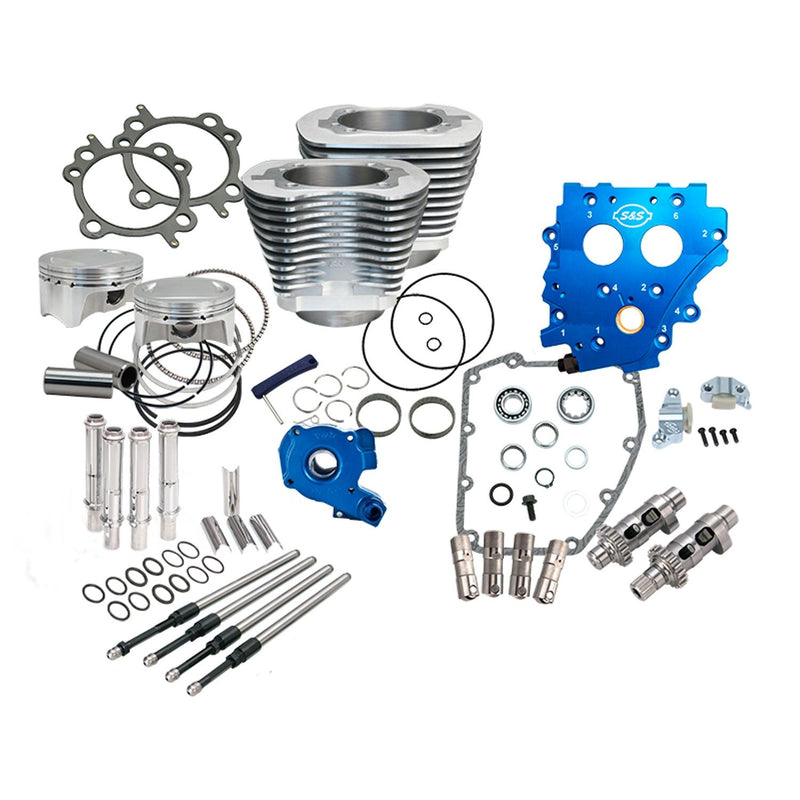

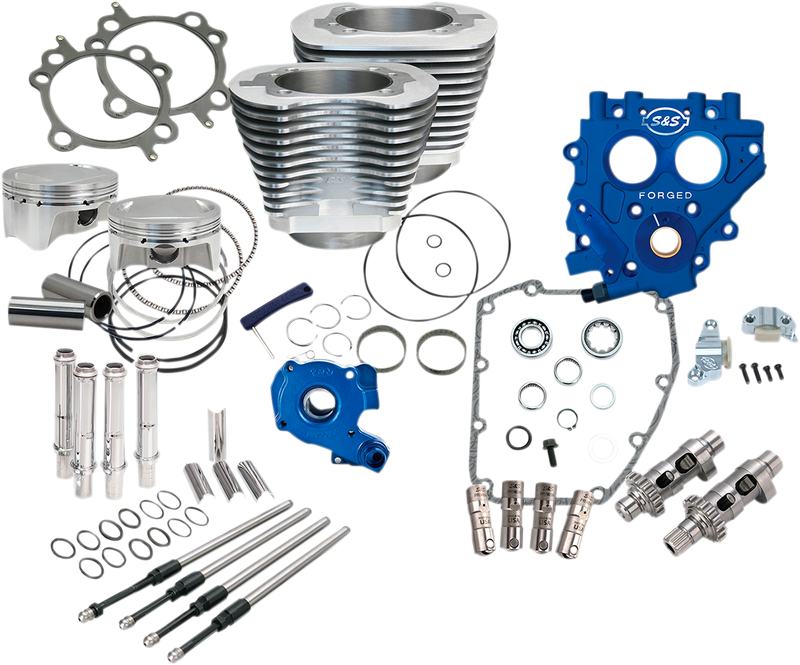

S&S CYCLE 100" Power Package for HD® Twin Cam 88® Models with 585 Easy Start® Chain Drive Cams - Silver - 330-0662
The 100" Power Package is the ideal combination of performance and savings to transform your Twin Cam HD without breaking the bank. Bump the early Twin Cam from 88ci to 100ci as well as adding matched cams/cam plate/oil pump and everything else a high performance cam chest needs to reliably make big power.
Specifications
- 4" Bore bolt on cylinder and piston kit
- 10.5:1 Compression
- Silver Finish
- S&S 585 Easy Start Chain Drive Cams
- TC3 Oil Pump
- TC3 Cam Plate
- S&S cam chain tensioners
- Quickee Adjustable Pushrods with Tubes
- S&S Precision Tappets
Features & Benefits
- Low friction Ductile Cast Iron liner
- 10.5:1 Compression -Bolts in. No machining, balancing, or splitting the crankcases
- Upgrade TC88 to 100 cu inches
- Cylinders fit to pistons- No machining required
- All parts required to upgrade to gear drive cam or hydraulic tensioners in one easy to order part number
- Engineered package to deliver the best bolt in performance
- Although not mandatory, we recommend adding an oil cooler to bikes ridden in warmer climates
*Not compatible with S&S 79cc Super Stock® heads. Not recommended for Tri-Glide or other three wheel models due to lugging nature of these bikes.
NOTES: 20151022 Oil Pump Service Bulletin
Notice: S&S TC3 oil pumps and cam support plates for 1999-’16 Harley-Davidson® big twin engines are machined from aluminum forgings. This provides the strength and dimensional stability of a billet part, and eliminates voids, inclusions, and other structural defects associated with castings. Due to the material used and the as-forged texture of the parts, there may be some variation in the color of the blue anodized finish. This does not constitute a defect. Despite variations in color, the ability of the anodized coating to protect the parts is unchanged. You may install these products with confidence, knowing that they will function as they are intended.
Notes
- Not for '06 Dyna.
- Not compatible with S&S 79 cc Super Stock® heads.
- Not recommended for Tri-Glide or other three wheel models due to lugging nature of these bikes.
- '99-'04 Twin Cams will require the additional purchase of valve spring kit (sold separately). SKU 900-0593
Fitment Guide
| 2006 | Harley-Davidson | Electra Glide Classic FLHTC | - | - |
| 2006 | Harley-Davidson | FLHX Street Glide | - | - |
| 2006 | Harley-Davidson | FLHTCUSE Screamin Eagle Ultra Classic Electra Glide | - | - |
| 2006 | Harley-Davidson | FLST Heritage Softail | - | - |
| 2006 | Harley-Davidson | FLSTI Heritage Softail | - | - |
| 2006 | Harley-Davidson | FLHXI Street Glide | - | - |
| 2005-2006 | Harley-Davidson | FLSTNI Softail Deluxe | - | - |
| 2005-2006 | Harley-Davidson | FLSTSC Softail Springer Classic | - | - |
| 2005-2006 | Harley-Davidson | FLSTN Softail Deluxe | - | - |
| 2005-2006 | Harley-Davidson | FLSTSCI Softail Springer Classic | - | - |
| 2005 | Harley-Davidson | 15th Anniversary Fat Boy FLSTF | - | - |
| 2005 | Harley-Davidson | FLHTCSE2 Screamin Eagle Electra Glide 2 | - | - |
| 2005 | Harley-Davidson | FXDC Super Glide Custom | - | - |
| 2005 | Harley-Davidson | FXDCI Super Glide Custom | - | - |
| 2004-2006 | Harley-Davidson | FLHRSI Road King Custom | - | - |
| 2004-2006 | Harley-Davidson | FLHRS Road King Custom | - | - |
| 2004-2005 | Harley-Davidson | FXDI Dyna Super Glide | - | - |
| 2004-2005 | Harley-Davidson | FXDLI Dyna Low Rider | - | - |
| 2004-2005 | Harley-Davidson | FXDWGI Dyna Wide Glide | - | - |
| 2004-2005 | Harley-Davidson | FXDXI Dyna Super Glide Sport | - | - |
| 2004 | Harley-Davidson | FLHTCSE Screamin Eagle Electra Glide | - | - |
| 2003-2006 | Harley-Davidson | FLHTI Electra Glide Standard | - | - |
| 2003 | Harley-Davidson | FLHRSEI2 Screamin Eagle Road King 2 | - | - |
| 2002 | Harley-Davidson | FXDWG3 CVO Dyna Wide Glide | - | - |
| 2002 | Harley-Davidson | FLHRSEI Screamin Eagle Road King | - | - |
| 2001-2006 | Harley-Davidson | FLSTCI Heritage Softail Classic | - | - |
| 2001-2006 | Harley-Davidson | FXSTI Softail Standard | - | - |
| 2001-2006 | Harley-Davidson | FXSTDI Softail Deuce | - | - |
| 2001-2006 | Harley-Davidson | FXSTBI Night Train | - | - |
| 2001-2006 | Harley-Davidson | FXSTSI Springer Softail | - | - |
| 2001-2006 | Harley-Davidson | FLSTFI Fat Boy | - | - |
| 2001-2003 | Harley-Davidson | FXDXT Dyna Super Glide T-Sport | - | - |
| 2001-2003 | Harley-Davidson | FLSTSI Heritage Springer | - | - |
| 2001 | Harley-Davidson | FLTRSEI2 Screamin Eagle Road Glide 2 | - | - |
| 2001 | Harley-Davidson | FXDWG2 CVO Dyna Wide Glide | - | - |
| 2000-2006 | Harley-Davidson | FLHRI Road King | - | - |
| 2000-2006 | Harley-Davidson | FXSTD Softail Deuce | - | - |
| 2000-2003 | Harley-Davidson | Wide Glide EFI FXDWGI | - | - |
| 2000-2002 | Harley-Davidson | Electra Glide Standard EFI FLHTI | - | - |
| 2000 | Harley-Davidson | FLTRSEI Screamin Eagle Road Glide | - | - |
| 1999-2006 | Harley-Davidson | FLHR Road King | - | - |
| 1999-2006 | Harley-Davidson | FLHRCI Road King Classic | - | - |
| 1999-2006 | Harley-Davidson | FLHT Electra Glide Standard | - | - |
| 1999-2006 | Harley-Davidson | FLHTCI Electra Glide Classic | - | - |
| 1999-2006 | Harley-Davidson | FLHTCUI Electra Glide Ultra Classic | - | - |
| 1999-2006 | Harley-Davidson | FLTR Road Glide | - | - |
| 1999-2006 | Harley-Davidson | FLTRI Road Glide | - | - |
| 1999-2006 | Harley-Davidson | FXSTB Night Train | - | - |
| 1999-2006 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU | - | - |
| 1999-2006 | Harley-Davidson | Electra Glide Police FLHTPI | - | - |
| 1999-2006 | Harley-Davidson | Electra Glide Police FLHTP | - | - |
| 1999-2006 | Harley-Davidson | FLSTC Heritage Softail Classic | - | - |
| 1999-2006 | Harley-Davidson | FLSTF Fat Boy | - | - |
| 1999-2006 | Harley-Davidson | FXST Softail Standard | - | - |
| 1999-2006 | Harley-Davidson | FXSTS Springer Softail | - | - |
| 1999-2005 | Harley-Davidson | FLHTC Electra Glide Classic | - | - |
| 1999-2005 | Harley-Davidson | FXDX Dyna Super Glide Sport | - | - |
| 1999-2005 | Harley-Davidson | FXD Dyna Super Glide | - | - |
| 1999-2005 | Harley-Davidson | FXDL Dyna Low Rider | - | - |
| 1999-2005 | Harley-Davidson | FXDWG Dyna Wide Glide | - | - |
| 1999-2003 | Harley-Davidson | FLSTS Heritage Springer | - | - |
| 1999-2000 | Harley-Davidson | FXDS-Conv Dyna Convertible | - | - |
| 1999 | Harley-Davidson | Road King EFI FLHR | - | - |
| 1999 | Harley-Davidson | FXSTC Softail Custom | - | - |
Specs
| PRODUCT NAME | PERFORMANCE KIT |
| TYPE | ENGINE |
| STYLE | 585CE |
| MODEL | POWER PACKAGE |
| BASE COLOR | SILVER |
| COLOR/FINISH | SILVER |
| DISPLACEMENT | 100" |
| BORE SIZE | 4.000" |
| COMPRESSION RATIO | 10.5:1 |
| CAM DRIVE TYPE | CHAIN |
| UNITS | KIT |
| RIDING STYLE | STREET |
