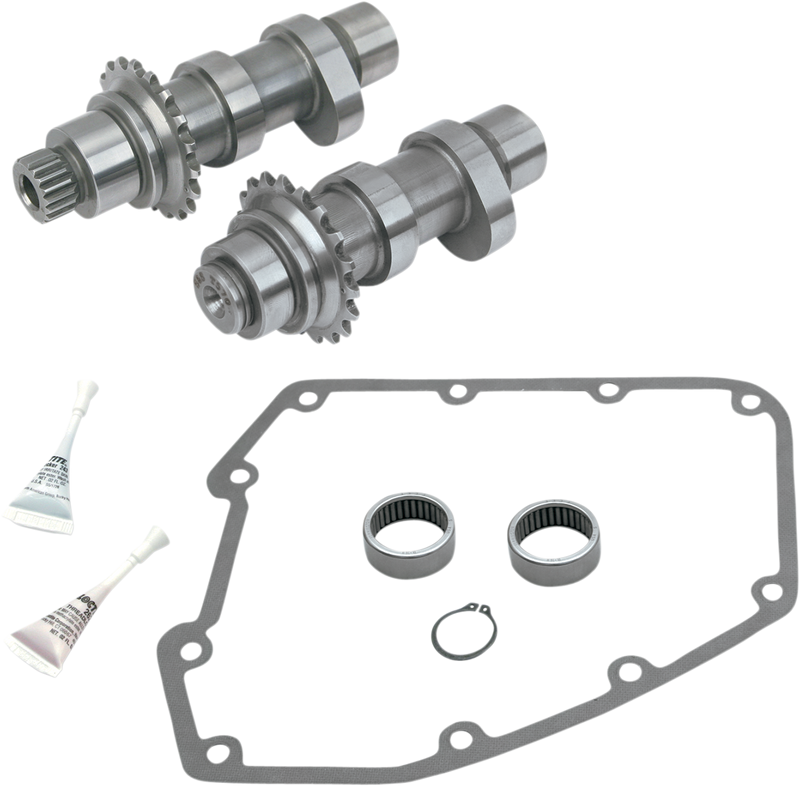

S&S CYCLE Chain Drive Camshaft Kit for '06 Dyna® and 2007-'16 Big Twins - 106-4858
by S&S CYCLE
SKU 106-4858
Sold out
Original price
$672.95
-
Original price
$672.95
Original price
$672.95
$672.95
-
$672.95
Current price
$672.95
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- Designed for engines with 96 to 106 CID and 9:1 to 9:9 compression, this is a bolt-in cam set for stock or mildly modified touring bikes
- More power across the rpm range, with improved low and midrange torque, strongest from 1,000-4,000 rpm
- Cams for '06 Dyna and '07-'17 Twin Cam are for use with models with hydraulic tensioner chain drive system
- Made in the USA
Notes: Not recommended for compression ratios of 10:1 or greater.
Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Note: Can be used with stock pushrods, springs, and lifters.
Specs
| PRODUCT NAME | CAM KIT |
| TYPE | CHAIN |
| APPLICATION | INTAKE / EXHAUST |
| GRIND | 551 SERIES |
| INTAKE LIFT AT TDC | 0.178" |
| INTAKE OPEN | 17 |
| INTAKE LOBE CENTERLINE | 91 |
| INTAKE CLOSE | 19 |
| INTAKE LIFT | 0.550" |
| INTAKE DURATION | 216 |
| EXHAUST LIFT | 0.550" |
| EXHAUST DURATION | 238 |
| EXHAUST LIFT AT TDC | 0.170" |
| EXHAUST OPEN | 41 |
| EXHAUST LOBE CENTERLINE | 102 |
| EXHAUST CLOSE | 17 |
| UNITS | KIT |
| RIDING STYLE | STREET |
