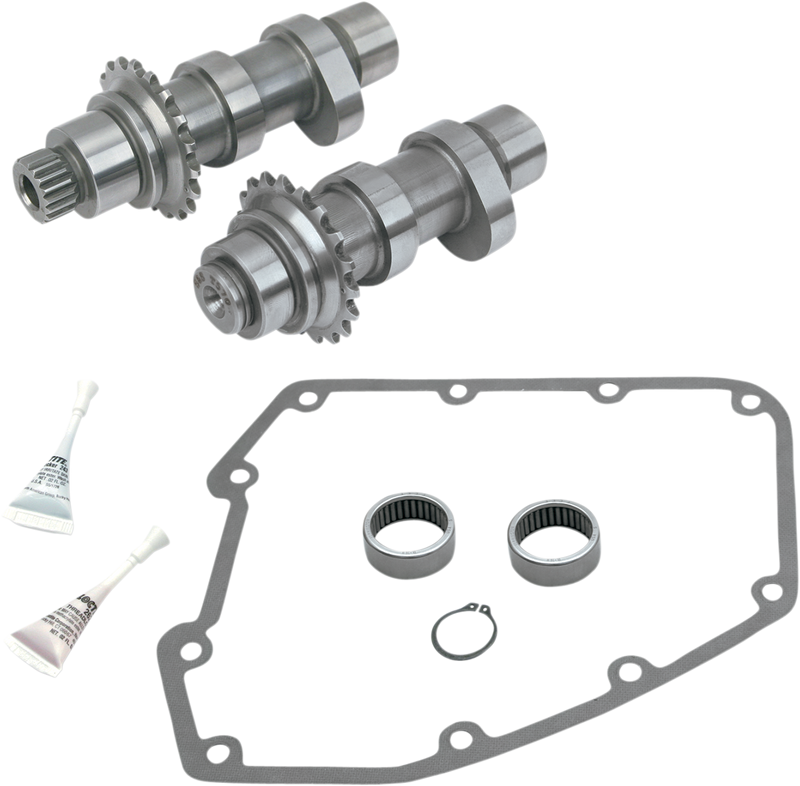

S&S CYCLE Chain Drive Camshaft Kit for '06 Dyna® and 2007-'16 Big Twins - 330-0106
by S&S CYCLE
SKU 330-0106
Original price
$672.95
-
Original price
$672.95
Original price
$672.95
$672.95
-
$672.95
Current price
$672.95
🚚 Estimated Delivery: 22 Oct - 29 Oct
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- Great overall cam for Softail and Dyna
- Provides strong low-end torque and horsepower
- Strongest from 1500-5000 rpm
- Made in the USA
Notes: Installer must check coil bind, valve to valve clearance and valve to piston clearance. Not recommended for engines having compression ratios greater the 10.1:1.
Note: For use with models with hydraulic tensioner chain drive system and require high lift valve springs.
Specs
| PRODUCT NAME | CAM KIT |
| TYPE | CHAIN |
| APPLICATION | INTAKE / EXHAUST |
| GRIND | 583 SERIES |
| INTAKE LIFT AT TDC | 0.113" |
| INTAKE OPEN | 5 |
| INTAKE LOBE CENTERLINE | 96.5 |
| INTAKE CLOSE | 18 |
| INTAKE LIFT | 0.583" |
| INTAKE DURATION | 203 |
| EXHAUST LIFT | 0.583" |
| EXHAUST DURATION | 262 |
| EXHAUST LIFT AT TDC | 0.206" |
| EXHAUST OPEN | 58 |
| EXHAUST LOBE CENTERLINE | 107 |
| EXHAUST CLOSE | 24 |
| UNITS | KIT |
| RIDING STYLE | STREET |
