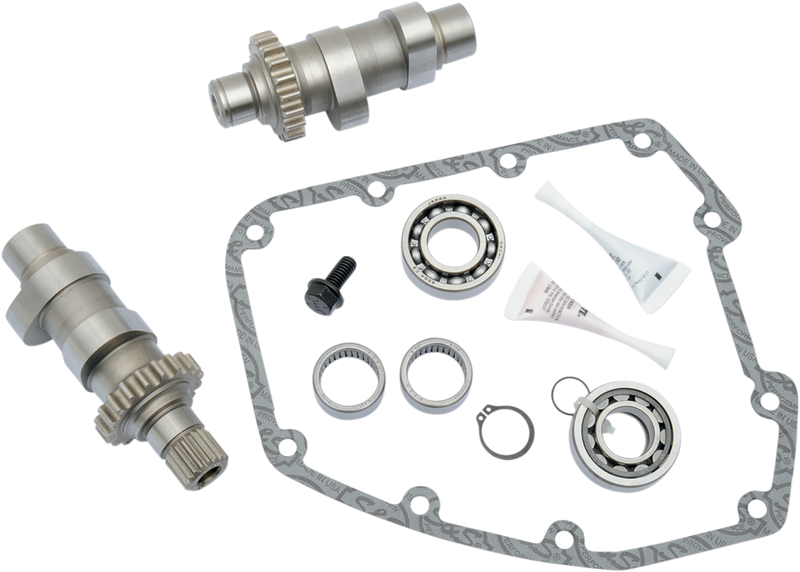

S&S CYCLE Chain Drive Camshaft Kit for 1999-'06 HD® Big Twins except '06 HD® Dyna® - 330-0006
by S&S CYCLE
SKU 330-0006
Sold out
Original price
$601.95
-
Original price
$601.95
Original price
$601.95
$601.95
-
$601.95
Current price
$601.95
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- For 95" or larger engines with compression ratios between 10.0 to 10.75:1
- High-lift springs and adjustable pushrods required
- Strongest from 3000-6000 rpm
- Made in the USA
Notes: Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Note: Cams for '00-'06 Twin Cam are for use with stock splined drive gears; for installation on '99 Twin Cam motors you must purchase splined outer drive sprocket; S&S recommends Andrews 4340 steel driver sprocket.
Specs
| PRODUCT NAME | CAM KIT |
| TYPE | CHAIN |
| APPLICATION | EXHAUST / INTAKE |
| GRIND | 625 SERIES |
| INTAKE OPEN | 20 |
| INTAKE LOBE CENTERLINE | 107.5 |
| INTAKE CLOSE | 55 |
| INTAKE LIFT | 0.625" |
| INTAKE DURATION | 255 |
| EXHAUST LIFT | 0.625" |
| EXHAUST DURATION | 260 |
| EXHAUST LIFT AT TDC | 0.184" |
| EXHAUST OPEN | 60 |
| EXHAUST LOBE CENTERLINE | 110 |
| EXHAUST CLOSE | 20 |
| FEATURES | CAM KIT |
| UNITS | KIT |
| RIDING STYLE | STREET |
