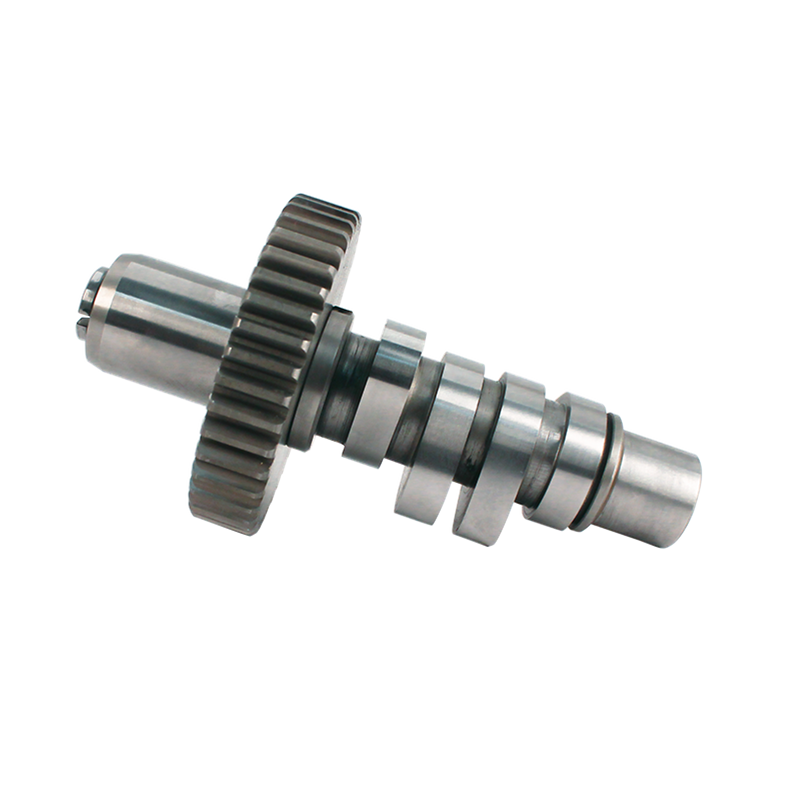

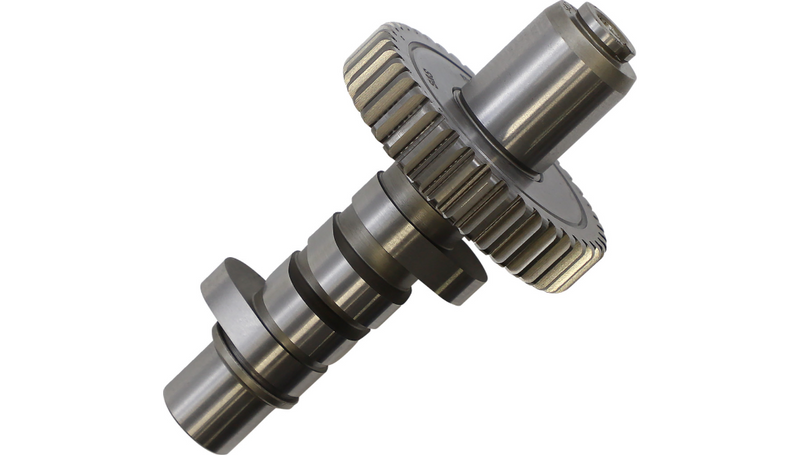

S&S CYCLE Camshaft for '84-'99 Big Twins - 33-5108
by S&S CYCLE
SKU 33-5108
Original price
$430.95
-
Original price
$430.95
Original price
$430.95
$430.95
-
$430.95
Current price
$430.95
🚚 Estimated Delivery: 22 Oct - 29 Oct
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- S&S Cams are tested on the dyno, street and track before being offered to the public
- With hundreds of hours of testing on each cam, you know you are getting the best cam S&S can produce
- For large displacement engines (110"+) with 10.5 to 11.5:1 compression and smaller engines (96-107") with 11 to 12:1 compression
- Requires high-lift springs
- Less overlap and fast ramps build higher cylinder pressure
- Lower TDC lift makes installation easier
- Designed for use with hydraulic tappets
- Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
- Made in the U.S.A.
Specs
| PRODUCT NAME | CAM |
| TYPE | GEAR |
| APPLICATION | INTAKE / EXHAUST |
| GRIND | 640 SERIES |
| INTAKE LIFT AT TDC | 0.222" |
| INTAKE OPEN | 25 |
| INTAKE LOBE CENTERLINE | 107.5 |
| INTAKE CLOSE | 60 |
| INTAKE LIFT | 0.640" |
| INTAKE DURATION | 265 |
| EXHAUST LIFT | 0.640" |
| EXHAUST DURATION | 265 |
| EXHAUST LIFT AT TDC | 0.192" |
| EXHAUST OPEN | 65 |
| EXHAUST LOBE CENTERLINE | 112.5" |
| EXHAUST CLOSE | 20 |
| UNITS | EACH |
| RIDING STYLE | STREET |
