S&S CYCLE Gear Drive Camshaft Kit for '06 HD® Dyna® and '07-'16 Big Twins - Complete Kit - 33-5270
by S&S CYCLE
SKU 33-5270
Sold out
Original price
$1,594.95
-
Original price
$1,594.95
Original price
$1,594.95
$1,594.95
-
$1,594.95
Current price
$1,594.95
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- For 103/110 CI engines
- Strongest from 3000-6000 rpm
- Compression ratios from 10.5:1 to 11.5:1
- Improves valve timing accuracy by eliminating timing chain lash

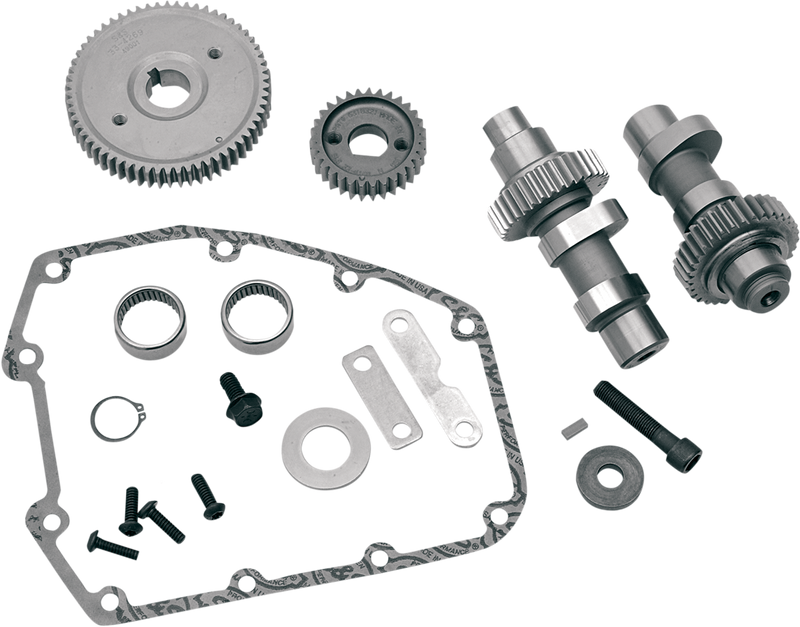

- Includes camshaft, inner and outer gears, gear cover gasket, oil passage block-off kit, retaining ring, and o-ring
Notes: High-lift springs and adjustable pushrods required.
Specs
| PRODUCT NAME | CAM KIT |
| TYPE | GEAR |
| APPLICATION | EXHAUST / INTAKE |
| GRIND | 640 SERIES |
| INTAKE LIFT AT TDC | 0.228" |
| INTAKE OPEN | 25 |
| INTAKE LOBE CENTERLINE | 107.5 |
| INTAKE CLOSE | 60 |
| INTAKE LIFT | 0.640" |
| INTAKE DURATION | 265 |
| EXHAUST LIFT | 0.640" |
| EXHAUST DURATION | 270 |
| EXHAUST LIFT AT TDC | 0.214" |
| EXHAUST OPEN | 60 |
| EXHAUST LOBE CENTERLINE | 110 |
| EXHAUST CLOSE | 25 |
| FEATURES | CAM KIT |
| UNITS | KIT |
| RIDING STYLE | STREET |
