S&S CYCLE 475G Gear Drive Camshaft Kit for 2017-Up M8 Models - 330-0645
by S&S CYCLE
SKU 330-0645
Original price
$782.95
-
Original price
$782.95
Original price
$782.95
$782.95
-
$782.95
Current price
$782.95
🚚 Estimated Delivery: 22 Oct - 29 Oct
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
Features & Benefits

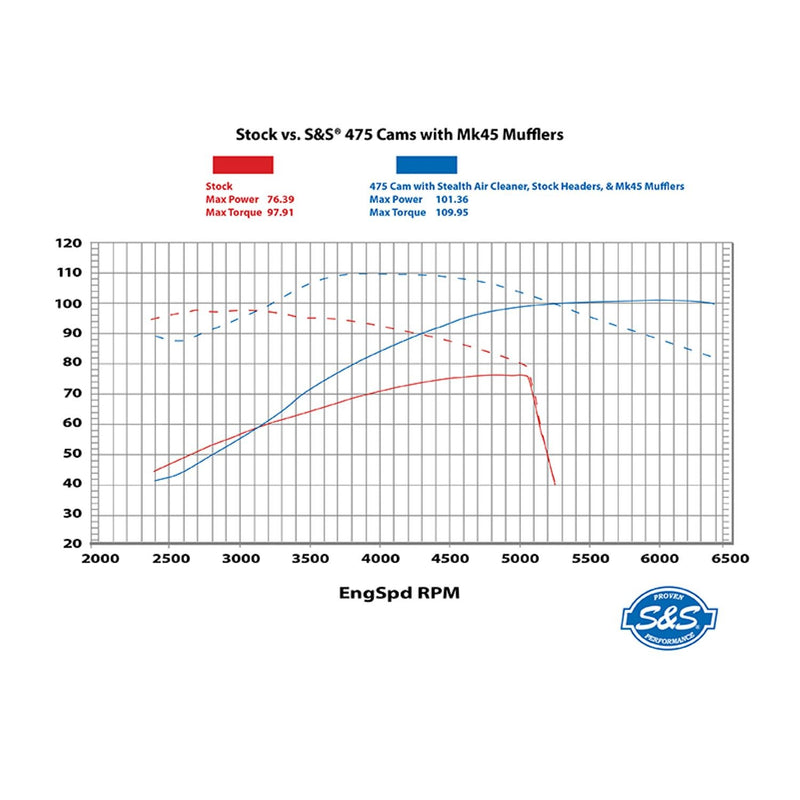

- The 475G is a 100 HP Bolt-in Cam (When coupled with intake and exhaust)
- Eliminates cam drive chain and tensioner

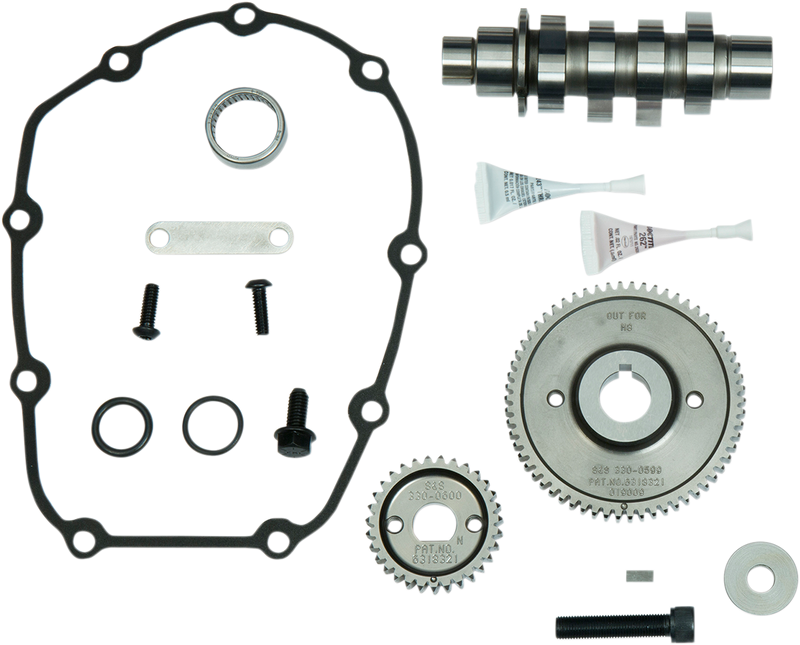

- Kits include all required bearings, o-rings, and hardware
- Gear drive cams provide improved valve timing accuracy
- Made in the USA
Suggested:
930-0123 Quickee Adjustable Pushrods with Cover Keepers for 2017-up M8 Models (Save labor and time! Eliminate the need to remove the rocker boxes and coolant lines)
330-0718 Precision Tappet Set Without HL2T Kit For 1999-'18 HD Big Twins, 2000-'19 HD® Sportster® and 2017-up M8 Models (Tappets should be replaced every time that the cam is replaced)

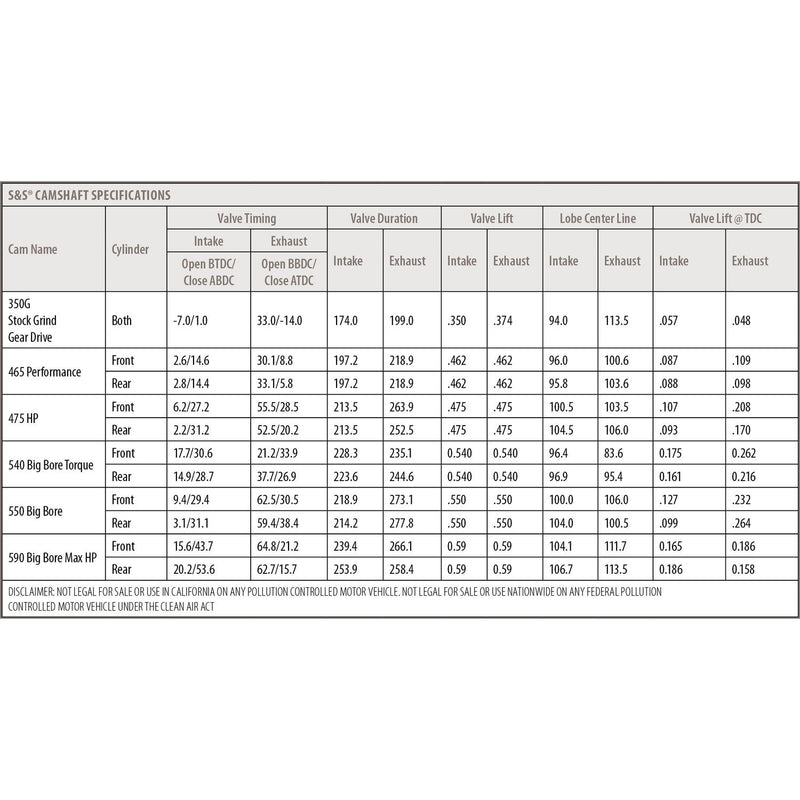

| Cylinder | Valve Timing | Valve Duration | Valve Lift | Lobe Center Line | Valve Lift @ TDC | |||||
| Intake | Exhaust | Intake | Exhaust | |||||||
| Open BTDC/ Close ATDC | Open BBDC/ Close ATDC | Intake | Exhaust | Intake | Exhaust | Intake | Exhaust | |||
| Front | 6.2/27.2 | 55.5/28.5 | 213.5 | 263.9 | .475 | .475 | 100.5 | 103.5 | .107 | .208 |
| Rear | 2.2/31.2 | 52.5/20.2 | 213.5 | 252.5 | .475 | .475 | 104.5 | 106.0 | .093 | .170 |
Specs
| PRODUCT NAME | CAM |
| TYPE | GEAR |
| APPLICATION | EXHAUST / INTAKE |
| GRIND | 475G |
| INTAKE OPEN | 6.2 FRONT, 2.2 REAR |
| INTAKE CLOSE | 27.2 FRONT, 31.2 REAR |
| INTAKE LIFT | 0.475" |
| INTAKE DURATION | 213.5 |
| EXHAUST LIFT | 0.475" |
| EXHAUST DURATION | 263.9 FRONT, 252.5 REAR |
| EXHAUST OPEN | 55.5 FRONT, 52.2 REAR |
| EXHAUST CLOSE | 28.5 FRONT, 20.2 REAR |
| UNITS | KIT |
| RIDING STYLE | STREET |
