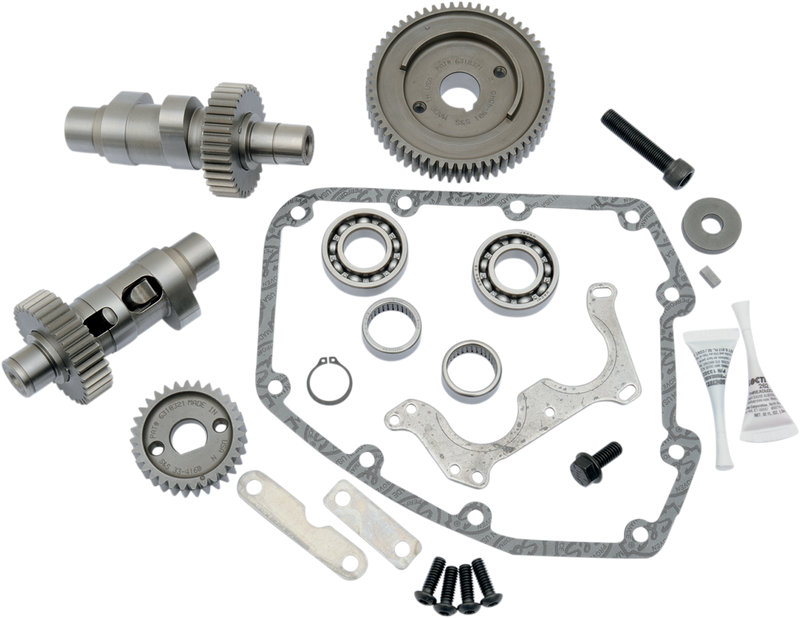

S&S CYCLE Easy Start® Gear Drive Camshaft Kit for '99-'06 HD® Big Twins except '06 HD® Dyna® - Complete Kit - 106-5243
by S&S CYCLE
SKU 106-5243
Sold out
Original price
$1,799.95
-
Original price
$1,799.95
Original price
$1,799.95
$1,799.95
-
$1,799.95
Current price
$1,799.95
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- Start any engine regardless of displacement or compression ratio with a stock starter
- Save your starter and battery; tested for 10,000 starts without running battery down
- Allow for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- All chain-drive cams include installation kit
- All gear-drive cams include 4-gear set and installation kit
- For 88/95/96/103 cubic-inch engines
- Compression ratios below 10:1
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- Due to the inherent characteristics of gear drives, you may experience more valve train noise.
- Not for models with OEM compression releases.
- Made in the U.S.A.
Specs
| PRODUCT NAME | CAM KIT |
| TYPE | GEAR |
| APPLICATION | INTAKE / EXHAUST |
| MODEL | EASY START |
| GRIND | 570 SERIES |
| INTAKE LIFT AT TDC | 0.187" |
| INTAKE OPEN | 20 |
| INTAKE LOBE CENTERLINE | 100 |
| INTAKE CLOSE | 40 |
| INTAKE LIFT | 0.570" |
| INTAKE DURATION | 240 |
| EXHAUST LIFT | 0.570" |
| EXHAUST DURATION | 250 |
| EXHAUST LIFT AT TDC | 0.179" |
| EXHAUST OPEN | 55 |
| EXHAUST LOBE CENTERLINE | 107.5 |
| EXHAUST CLOSE | 20 |
| FEATURES | INCLUDES INSTALLATION KIT |
| UNITS | KIT |
| RIDING STYLE | STREET |
