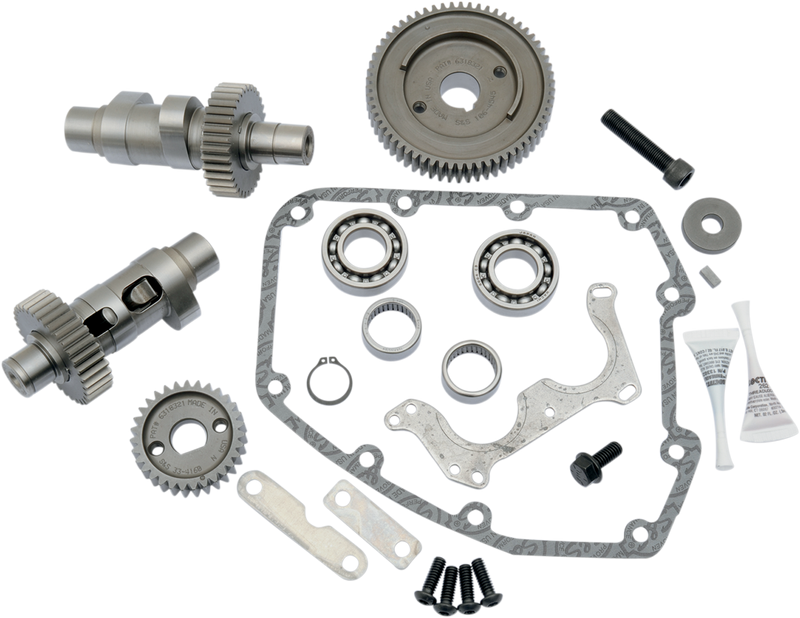

S&S CYCLE Easy Start® Gear Drive Camshaft Kit for '99-'06 HD® Big Twins except '06 HD® Dyna® - Complete Kit - 106-5247

SKU 106-5247
Original price $1,799.95 - Original price $1,799.95
Original price
$1,799.95
$1,799.95 - $1,799.95
Current price $1,799.95

🚚 Estimated Delivery: 22 Oct - 29 Oct

CONFIRM FITMENT BEFORE ORDERING

Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.

  • Start any engine regardless of displacement or compression ratio with a stock starter
  • Save your starter and battery; tested for 10,000 starts without running battery down
  • Allow for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
  • All chain-drive cams include installation kit
  • All gear-drive cams include 4-gear set and installation kit
  • For 88/95/96/103 cubic-inch engines
  • Compression ratios below 10:1
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Due to the inherent characteristics of gear drives, you may experience more valve train noise.
  • Not for models with OEM compression releases.
  • Made in the U.S.A.

    Note: Includes 4-gear set.
    Due to the inherent characterics of gear drives, there may be more valve train noise.



Specs
PRODUCT NAME CAM KIT
TYPE GEAR
APPLICATION INTAKE / EXHAUST
MODEL EASY START
GRIND 585 SERIES
INTAKE LIFT AT TDC 0.186"
INTAKE OPEN 20
INTAKE LOBE CENTERLINE 102.5
INTAKE CLOSE 45
INTAKE LIFT 0.585"
INTAKE DURATION 245
EXHAUST LIFT 0.585"
EXHAUST DURATION 260
EXHAUST LIFT AT TDC 0.179"
EXHAUST OPEN 60
EXHAUST LOBE CENTERLINE 110
EXHAUST CLOSE 20
FEATURES INCLUDES INSTALLATION KIT
UNITS KIT
RIDING STYLE STREET

Fitment Guide
