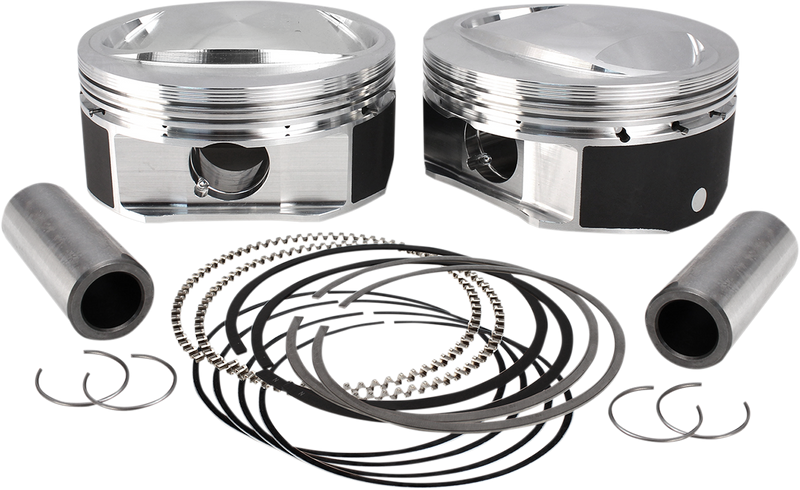

S&S CYCLE High Compression Pistons for '07-'17 HD® CVO® 110 Engines (except '17 touring models) - Std - 920-0114
🚚 Estimated Delivery: 22 Oct - 29 Oct
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
These high compression pistons for 2007-'17 HD® CVO 110 models except 2017 and Twin Cooled® touring models feature a 12.5cc raised dome to achieve a compression ratio of 10.6:1. Higher compression is a key factor in increasing performance, but it's only part of the solution. Not satisfied with 86 horsepower from your CVO 110 engine? Neither were we! Fortunately, we can show you how to make that big hog really run. Here's how. Install an S&S® performance exhaust and air cleaner - a must for any performance upgrade. Install a set of S&S® 585 bolt-in cams and tune the EFI system - produces over 107 horsepower. Increase the compression ratio from the stock 9.3:1 to 10.6:1 with these S&S® high compression pistons - brings the horsepower up to 114.
*Is not compatibable with Twin Cooled® models
- Deck height is 1.0985"
- Wristpin diameter is .927"
- Piston features a 12.5cc raised dome to achieve a compression ratio of 10.6:1
- Not for twin cooled or '17 touring models.
NOTE: For 110" twin cam CVO motors except twin cooled.
Specs
| PRODUCT NAME | PISTON KIT |
| TYPE | HIGH COMPRESSION |
| BORE SIZE | 4.000" |
| BORE - OVERSIZE | STANDARD |
| BORE OVERSIZE | STANDARD |
| COMPRESSION RATIO | 10.6:1 |
| DISPLACEMENT | 110" |
| PISTON HEAD SHAPE | RAISED DOME |
| UNITS | KIT |
| RIDING STYLE | STREET |
