S&S CYCLE S&S 106" Forged Stroker Pistons for '99-'16 HD® Big Twins - +.020" - 92-1212
by S&S CYCLE
SKU 92-1212
Original price
$984.95
-
Original price
$984.95
Original price
$984.95
$984.95
-
$984.95
Current price
$984.95
🚚 Estimated Delivery: 22 Oct - 29 Oct
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
These forged 3-7/8" bore stroker pistons for 1999-'16 HD® big twin are required for the S&S 106" stock bore stroker kit with 4-1/2" stroke flywheels. They are compatible with stock or S&S® Super Stock® cylinder heads. Stock 88" cylinders may be bored to fit these pistons, or S&S has replacement cylinders available.. +.020" oversize.
- Required for S&S 106" stock bore stroker kit with 4-1/2" stroke flywheels
- Compatible with stock or S&S Super Stock cylinder heads

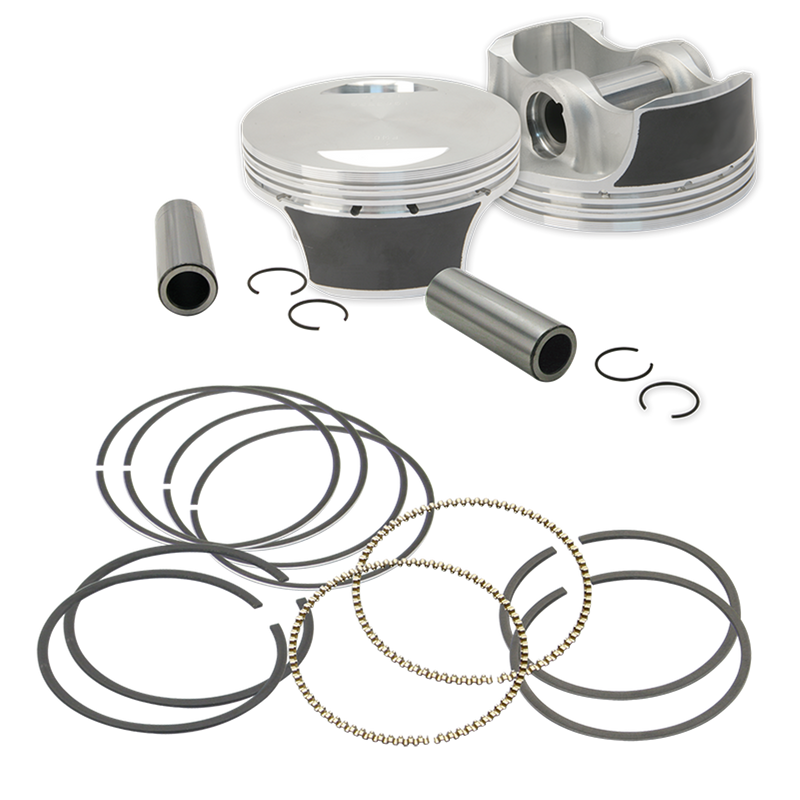

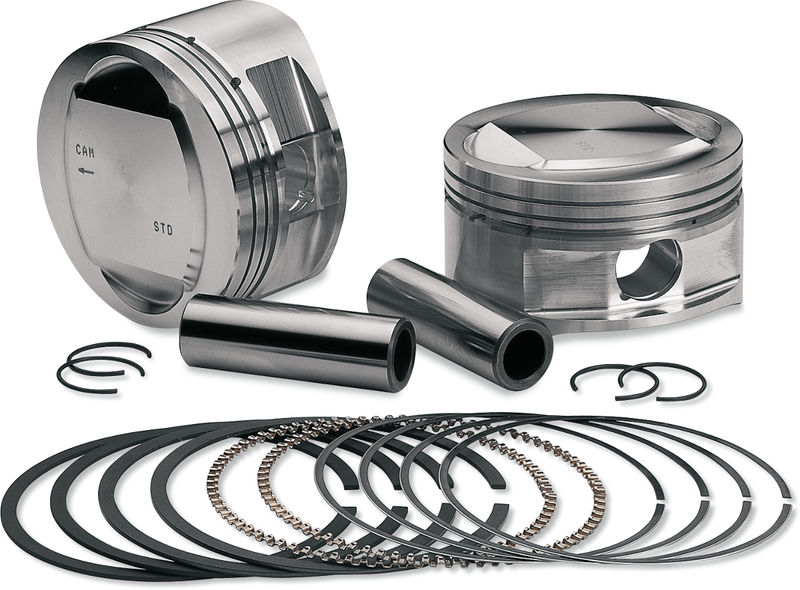

- Piston kit includes forged pistons, rings, wrist pins and clips for a complete motor
- Made in the U.S.A.
NOTES: S&S 3 7/8" pistons for 95" kits are machined to such close tolerances that it is not necessary to measure the piston. Additionally, the low friction coating on the piston skirt makes taking measurements very difficult. Therefore, hone cylinders to nominal diameter +/- 0.0001" for correct clearance.
Specs
| PRODUCT NAME | PISTON KIT |
| PISTON MATERIAL | FORGED ALUMINUM |
| BORE SIZE | 3.875" |
| BORE - OVERSIZE | +0,020" |
| BORE OVERSIZE | +0.020" |
| DISPLACEMENT | 106" |
| STROKE LENGTH | 4-1/2" |
| UNITS | KIT |
| RIDING STYLE | STREET |
