S&S CYCLE Piston Kit - Low Compression - 74" Stock Motor - +.030 - Harley-Davidson '41-'80 - 106-5498
by S&S CYCLE
SKU 106-5498
Sold out
Original price
$864.95
-
Original price
$864.95
Original price
$864.95
$864.95
-
$864.95
Current price
$864.95
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- For 74" stock big twin motors
- Forged pistons for superior strength

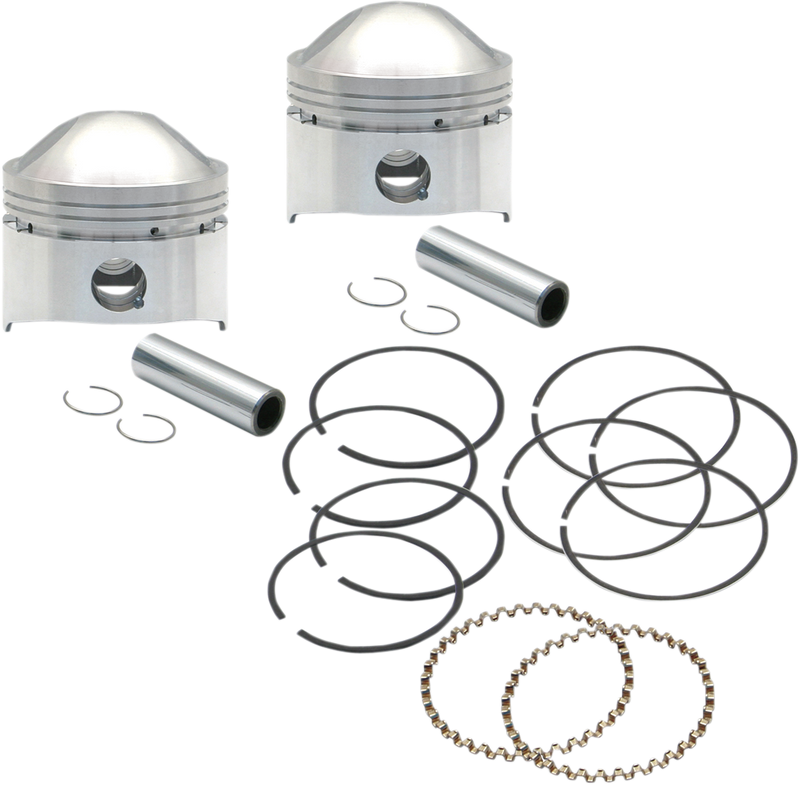

- Piston kits include set of pistons, rings, wristpins, and clips
- Wrist pin deck height 1.436"
- Made in the U.S.A.
NOTES: Require the use of connecting rods with a rod length of 7.440"(standard length OEM #24281-74A); use of earlier connecting rod with rod length of 7.470"(OEM #24281-41A) will result in a slight increase in the compression ratio of about one-halfpoint, and may also result in clearance problems (check all piston to cylinder head clearances carefully when using early style rods).
Ā
Specs
| PRODUCT NAME | PISTON KIT |
| TYPE | LOW COMPRESSION |
| PISTON MATERIAL | FORGED |
| BORE SIZE | 3.4675" |
| BORE - OVERSIZE | +0,030" |
| BORE OVERSIZE | +0.030" |
| COMPRESSION RATIO | 8.0:1 |
| DISPLACEMENT | 74" |
| STROKE LENGTH | 3-31/32" |
| UNITS | KIT |
| RIDING STYLE | STREET |
