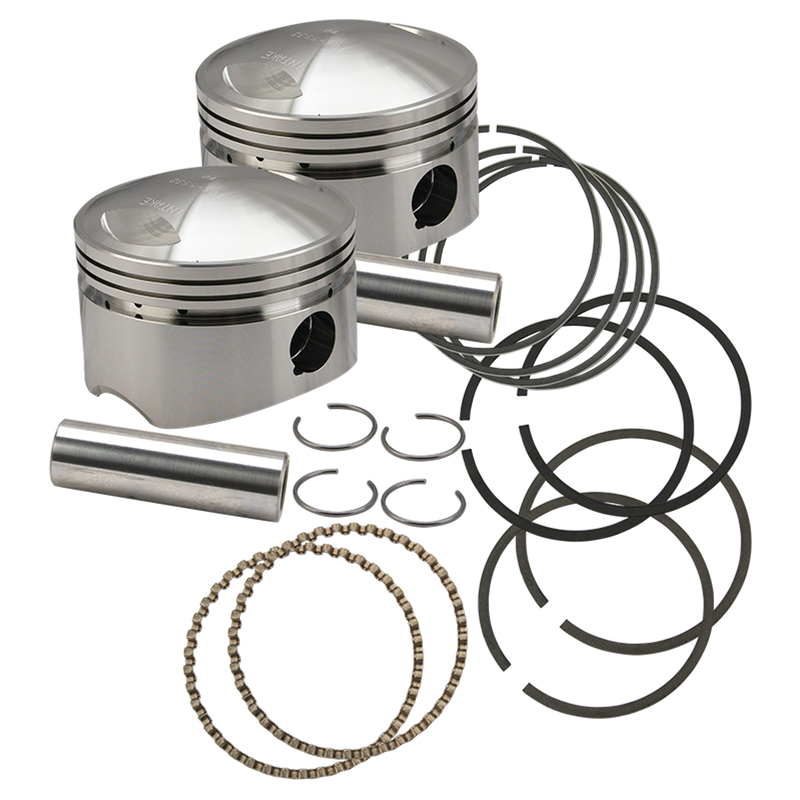

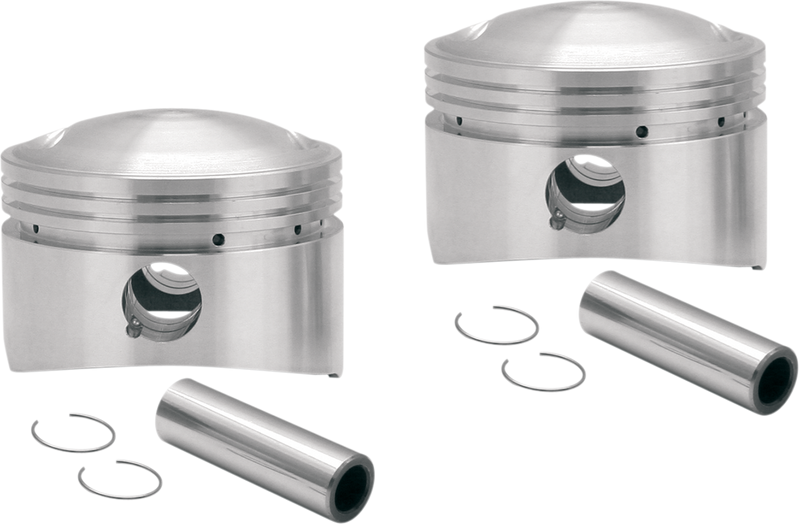

S&S CYCLE S&S® Forged 3 5/8" Bore Piston For '36-'84 OHV Big Twins - Standard - 106-5535

This new forged, high compression, 3-5/8" bore stroker piston replaces several cast and forged big bore pistons that S&S^® previously offered. Applications for this piston include 88" (4-1/4" stroke). 93" (4-1/2" stroke), and 96" (4-5/8" stroke) engines with stock 81/2" diameter flywheels, and 98" (4-3/4" stroke) and 103" (5" stroke) engines with 8-1/4" small diameter flywheels. As with the new stock bore stroker piston, the modern metallurgy and advanced skirt profiles allow a relatively close piston fit for low engine noise and long engine life. 3-5/8" bore, standard bore.

• Forged pistons for superior strength
• Modern alloys and piston skirt profiles for low noise and long engine life
• Includes set of pistons, rings, wristpins, and clips

  NOTES: Compression ratios will change when replacing existing pistons in S&S engines with this series of forged pistons. If higher compression is desired, we suggest shortening cylinders, or decking heads to achieve the desired compression ratio. A change of .060" will produce approximately 1 point of change in the compression ratio. S&S offers machine shop services through the S&S Service and Speed Center®. New pistons can be fit to your existing cylinders for a reasonable charge, and cylinders can be shortened to your specifications if higher compression ratio is desired.
