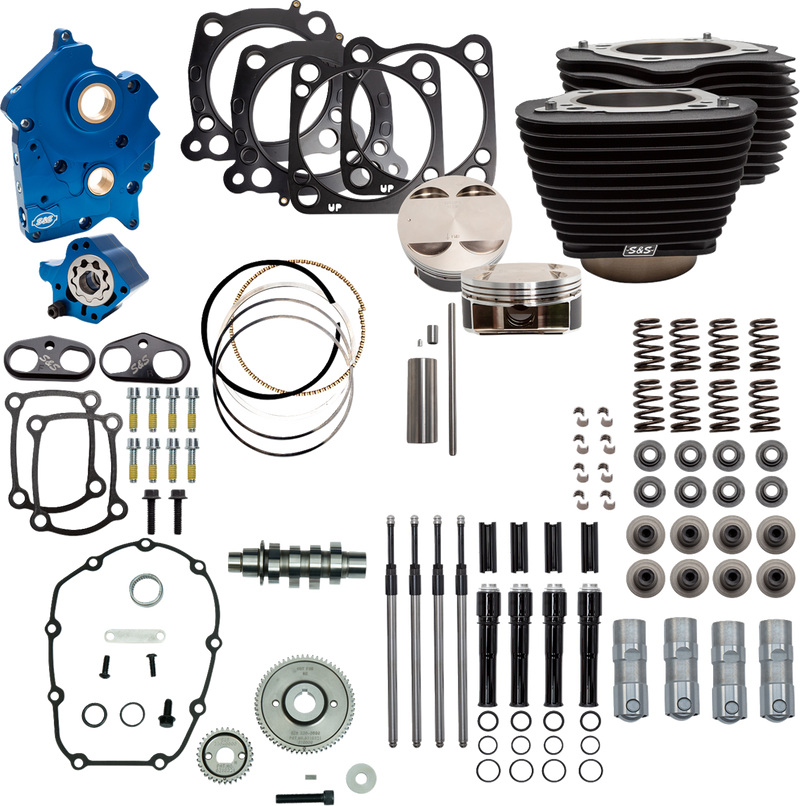

S&S CYCLE 124" Power Pack - 4.375" Stroke - Oil Cooled - Black Granite w/Highlights - M8 - Harley-Davidson '17-'25 - 310-1059C
by S&S CYCLE
SKU 310-1059C
Original price
$6,348.95
-
Original price
$6,348.95
Original price
$6,348.95
$6,348.95
-
$6,348.95
Current price
$6,348.95
🚚 Estimated Delivery: 09 Oct - 16 Oct
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- Bolt-on kit
- With updated fins
- No case machining required
- Forged pistons
- Made in the USA
- Includes oil pump/cam plate, pushrods, tappets, tappet cuffs, 550 camshaft, valve springs
Oil Pump/Cam Plate: - Precision machined from billet aluminum
- Passage plugs removable for servicing
- Independent scavenge sections for flywheel cavity and camchest
- Debris screens in both scavenge pickups
- Magnet in camchest to help to stop debris from entering oil pump
- 44% flow increase on supply side and 58% flow increase on scavenge side
- Pressure relief valve is adjustable with unit installed in engine
Pushrods: - Quickee pushrods
Tappets: - Hand assembled to exacting tolerances
- Reduced valve train noise from start up to shut down
- Close tolerances for low leak down rates
Tappet Cuffs: - Hard anodized black coating
- Billet aluminum construction
- Tappet stability in high lift and high rpm sitiuations
Camshaft: - S&S 550 camshaft - designed for big bore applications
Valve Springs: - Works well with camshafts up to 0.605" lift
- High performance conical single wire spring
- Includes top collars, keepers, valve seals and bottom collars
Specs
| Product Name | Performance Kit |
| Type | Big Bore |
| Model | Power Package |
| Color/Finish | Black Granite / Highlighted Fins |
| Features | Quickee Pushrods w/Gloss Black Covers / Includes Outer Drive Gears |
| Stroke Length | 4.375" |
| Displacement | 124" |
| Bore Size | 4.250" |
| Compression Ratio | 11.1:1 |
| Cam Drive Type | Gear |
| Cooling System | Oil Cooled |
| Units | Kit |
| Riding Style | Street |
