S&S CYCLE Super E Carburetor Kit for '84-'92 Big Twin and '86-'90 HD® Sportster® Models - 11-0440

Partial Super E carburetor kits do not include manifolds and are designed for the individual who purchases an S&S engine kit, which includes a manifold, or owns a bike that is presently equipped with a 1-7/8 inch S&S Super B carb and wishes to upgrade to an S&S Super E. If you need a carb for a bike with cylinders that are longer or shorter than stock, order the carb kit without the manifold, and order the correct manifold separately.

Fits 1984-'92 Harley-Davidson^® big twin and 1986-'90 Sportster^® models.

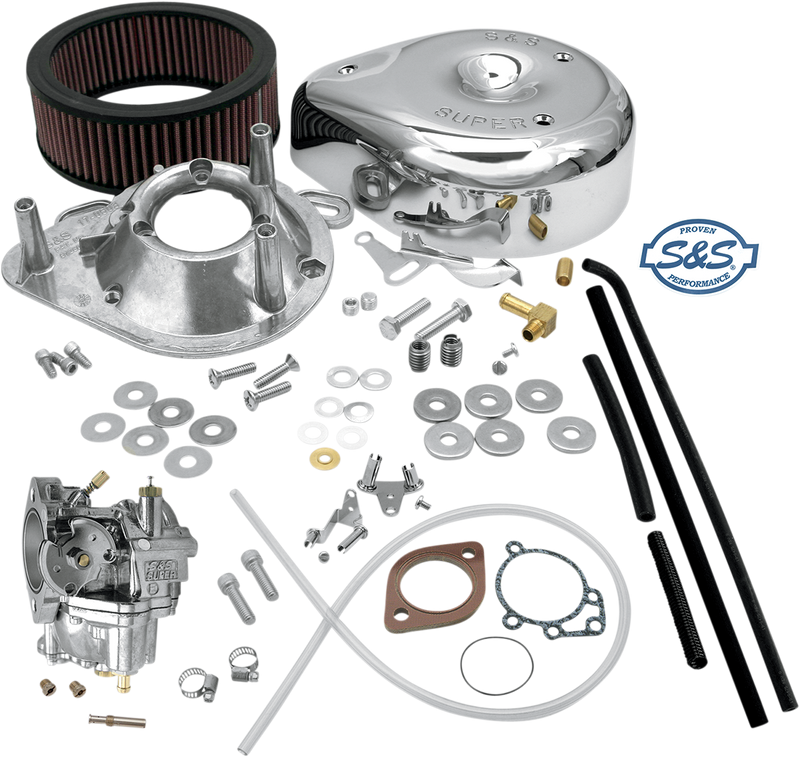

• Each gas carb kit includes a carburetor with updated fuel delivery pots and idle screws, teardrop air cleaner assembly, mounting hardware, fuel line, clamps overflow line, one extra intermediate jet and two main jets, VOES tubing (when applicable), installation and jetting instructions
• Super E carb has a 1-7/8" throat at the butterfly and a 1-9/16" venturi and is recommended for use on Big Twin or Sportster engines up to 100-cubic-inch
• Made in the U.S.A.
• S&S Super E carburetors require the use of a two-cable, pull open/pull close throttle assembly.
• Compatible with stock cables except as noted.

  NOTES: S&S® does not recommend polishing or chrome plating Super E & G carbs. Our repair department has seen many carbs with plugged passages due to polishing compounds, and some carbs that have been destroyed because the polishing or chrome plating had altered critical machined surfaces. Recommended for closed circuit use only—S&S Super E & G carbs shown are not approved for use on motor vehicles operated on California public highways, or in other states where similar pollution laws may apply. The user shall determine the suitability of the product for his or her use and shall assume all risk and liability in connection therewith. Not legal for sale or use on CA or EPA pollution controlled motorcycles.
