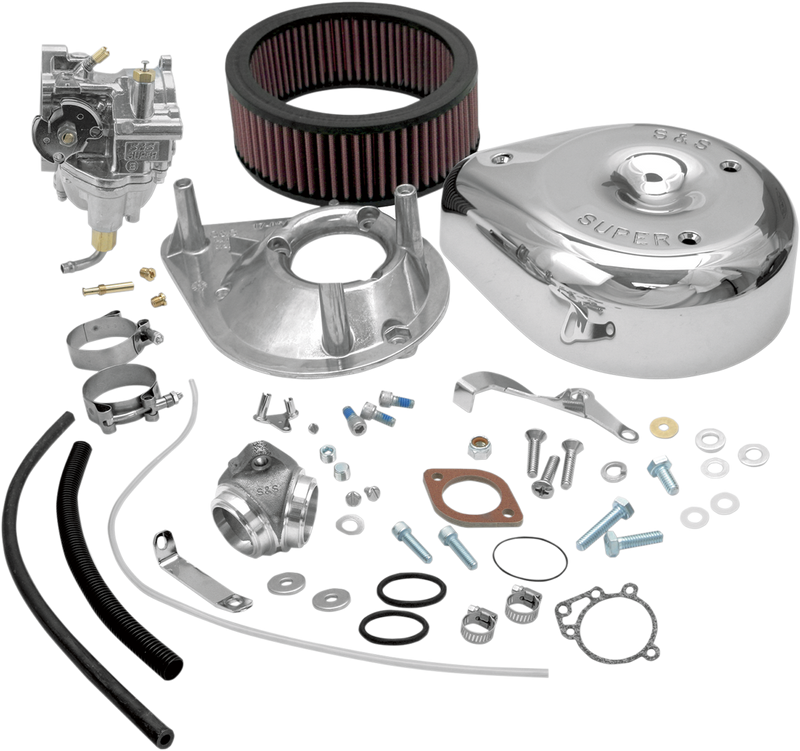

S&S CYCLE Super G Carburetor Kit for '79-'84 Big Twin Models, Standard Tanks - 11-0431

The complete S&S Super G carburetor kit contains everything you need for a complete installation on 1979-'84 HD^® big twin models with standard tanks. This kit includes a manifold for engines with stock length cylinders. 2-1/16 Inch bore.

• Each gas carb kit includes a carburetor with updated fuel delivery pots and idle screws, teardrop air cleaner assembly, manifold (unless otherwise noted), mounting hardware, fuel line, clamps overflow line, one extra intermediate jet and two main jets, VOES tubing (when applicable), installation and jetting instructions
• Super G carb has a 1-1/16" throat at the butterfly and a 1-3/4" venturi and is recommended for use on 90-cubic-inch and larger high-performance and modified engines
• Not recommended for smaller, lower compression engines
• Made in the U.S.A.
• S&S Super G carburetors require the use of a two-cable, pull open/pull close throttle assembly.
• Compatible with stock cables except as noted.

  NOTES: Stock motorcycles 1980 or earlier must be updated to a two cable pull open/pull closed throttle control system. A single cable pull open system cannot pull the throttle closed in case the throttle should accidentally stick in the open position. S&S offers high quality throttle cable kits in several lengths for this purpose. A press-on sleeve is also available to increase the diameter of the throttle grip area of 1972 and earlier handle bars to 1", allowing installation of modern throttle assemblies. See Section 7 for throttle cables and press-on sleeves. S&S "Shorty" carburetors will not fit HD® ironhead Sportster® models with vertical magnetos due to clearance problems between the magneto and the carburetor. Shovelhead engines with five gallon gas tanks and cylinders that are taller than stock require a special notched air cleaner cover to clear the gas tank. Since these taller engines also require a special length manifold, select a carb with a notched air cleaner cover without a manifold from the chart and refer to the manifolds starting on page 5-50 - 5-51 to select the correct length manifold. S&S does not recommend polishing or chrome plating Super E & G carburetors. Our repair department has seen many carbs with passages plugged with polishing compounds and some carbs that had been destroyed because the polishing or chrome plating had altered critical machined surfaces. Recommended for closed circuit use only. S&S Super E & G carbs shown are not approved for use on motor vehicles operated on California public highways, or in other states where similar pollution laws may apply. The user shall determine the suitability of the product for his or her use and shall assume all risk and liability in connection therewith.
